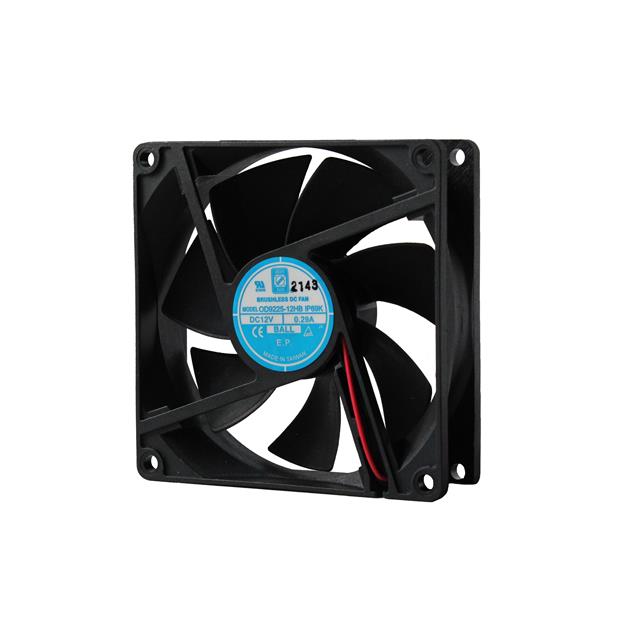

OD9225-12MBXE

Active

Orion Fans

DC AXIAL FAN, 12 V, SQUARE, 92 MM, 25.5 MM, BALL BEARING, 84.6 CFM

Search across all available documentation for this part.

Active

Orion Fans

DC AXIAL FAN, 12 V, SQUARE, 92 MM, 25.5 MM, BALL BEARING, 84.6 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	OD9225-12MBXE

Air Flow	2.37 m³/min
Air Flow	84.8 CFM
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Current Rating (Amps)	450 mA
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	50.2 dB(A)
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	5.5 W
RPM	4490 RPM
Static Pressure	0.4 in H2O
Static Pressure	99.6 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	8 VDC
Width [x]	25.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 11.34
Newark	Each	500	$ 14.88

General part information

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 84.8 CFM (2.37mł/min) 2 Wire Leads
