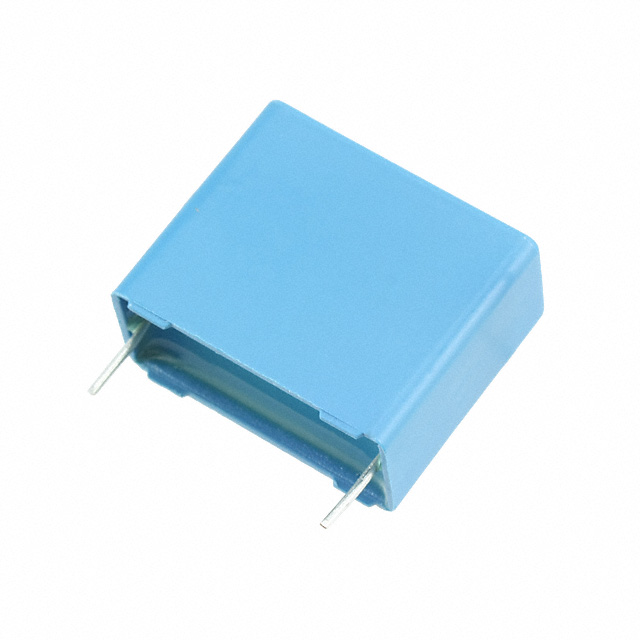

Specification	B32936A3155K000

Applications	EMI, Automotive, RFI Suppression
Capacitance	1.5 µF
Dielectric Material	Polyester, Metallized
Features	85C/85% Humidity, 85% Humidity, 85C Humidity
Height - Seated (Max)	0.866 in
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Ratings	X2, AEC-Q200
Size / Dimension Length	1.634 in
Size / Dimension Width	0.472 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	305 V
