RQ 0402 357R 0.1% 10PPM 5K RL-9-2176362-2

RQ73C1E267RBTD

Active
TE Connectivity AMP Connectors

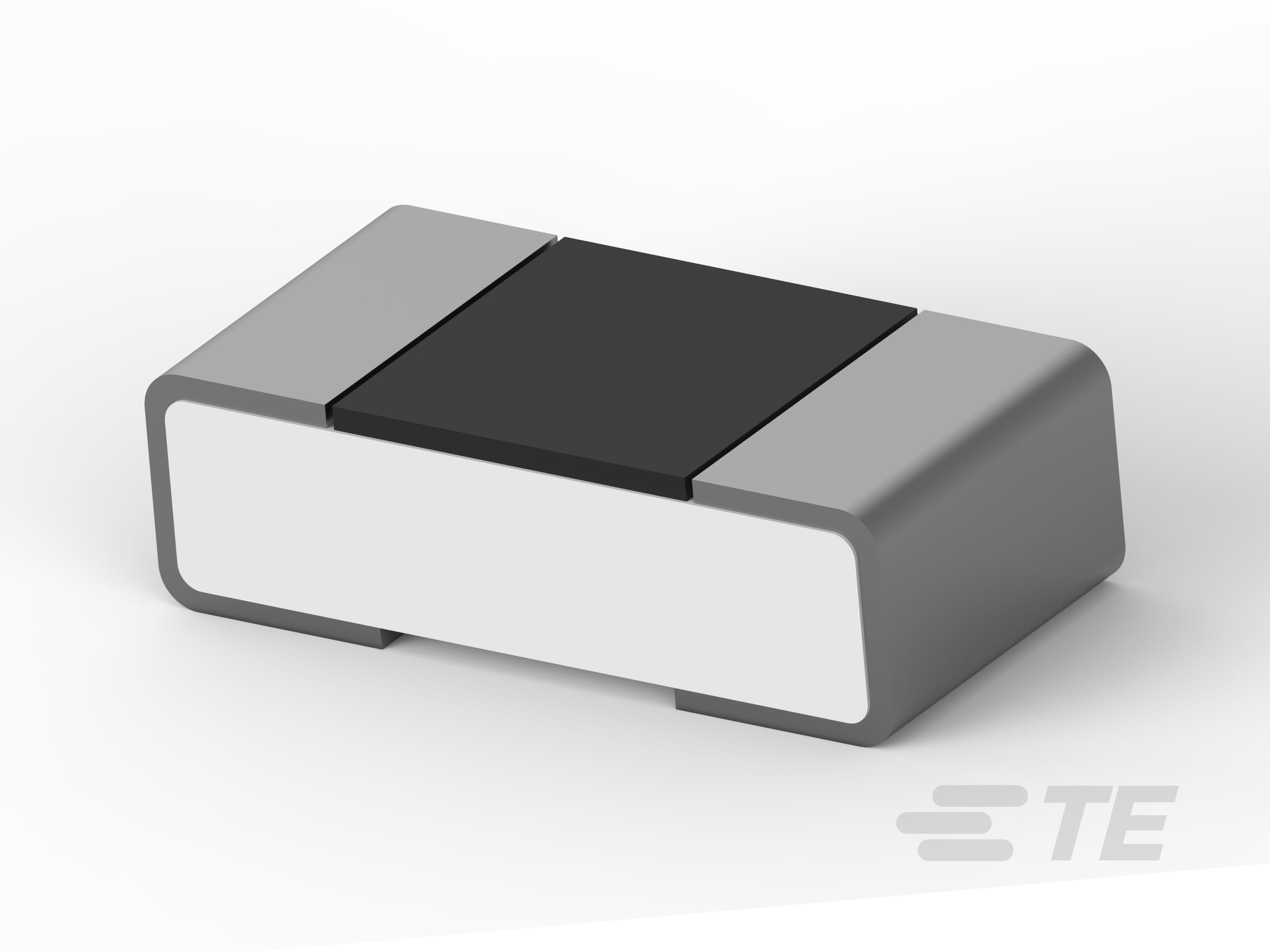

SMD CHIP RESISTOR, 267 OHM, ± 0.1%, 63 MW, 0402 [1005 METRIC], THIN FILM

Find alt
RQ 0402 357R 0.1% 10PPM 5K RL-9-2176362-2

RQ73C1E267RBTD

Active
TE Connectivity AMP Connectors

SMD CHIP RESISTOR, 267 OHM, ± 0.1%, 63 MW, 0402 [1005 METRIC], THIN FILM

Find alt

Description

General part information

Holsworthy RQ73 Series

267 ohm, Surface Mount Precision Resistor, Thin Film, 0402, .0625 W, .1 %, ±10 ppm/°C, Solder, 2 Terminations, .3 mm [.012 in] Height, Holsworthy RQ73

Technical Specifications

Parameters and characteristics for this part

SpecificationRQ73C1E267RBTD
CompositionThin Film
FeaturesAutomotive AEC-Q200, Anti-Sulfur
Height - Seated (Max)0.016 in
Number of Terminations2
Operating Temperature (Max)155 °C
Operating Temperature (Min)-55 °C
Package / Case0402 (1005 Metric)
Package Name0402
Power (Watts)0.063 W
Power (Watts) Options1/16W
Resistance267 Ohm
Size / Dimension Length0.039 in
Size / Dimension Width0.02 in
Temperature Coefficient10 ppm/°C
Tolerance0.1 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
