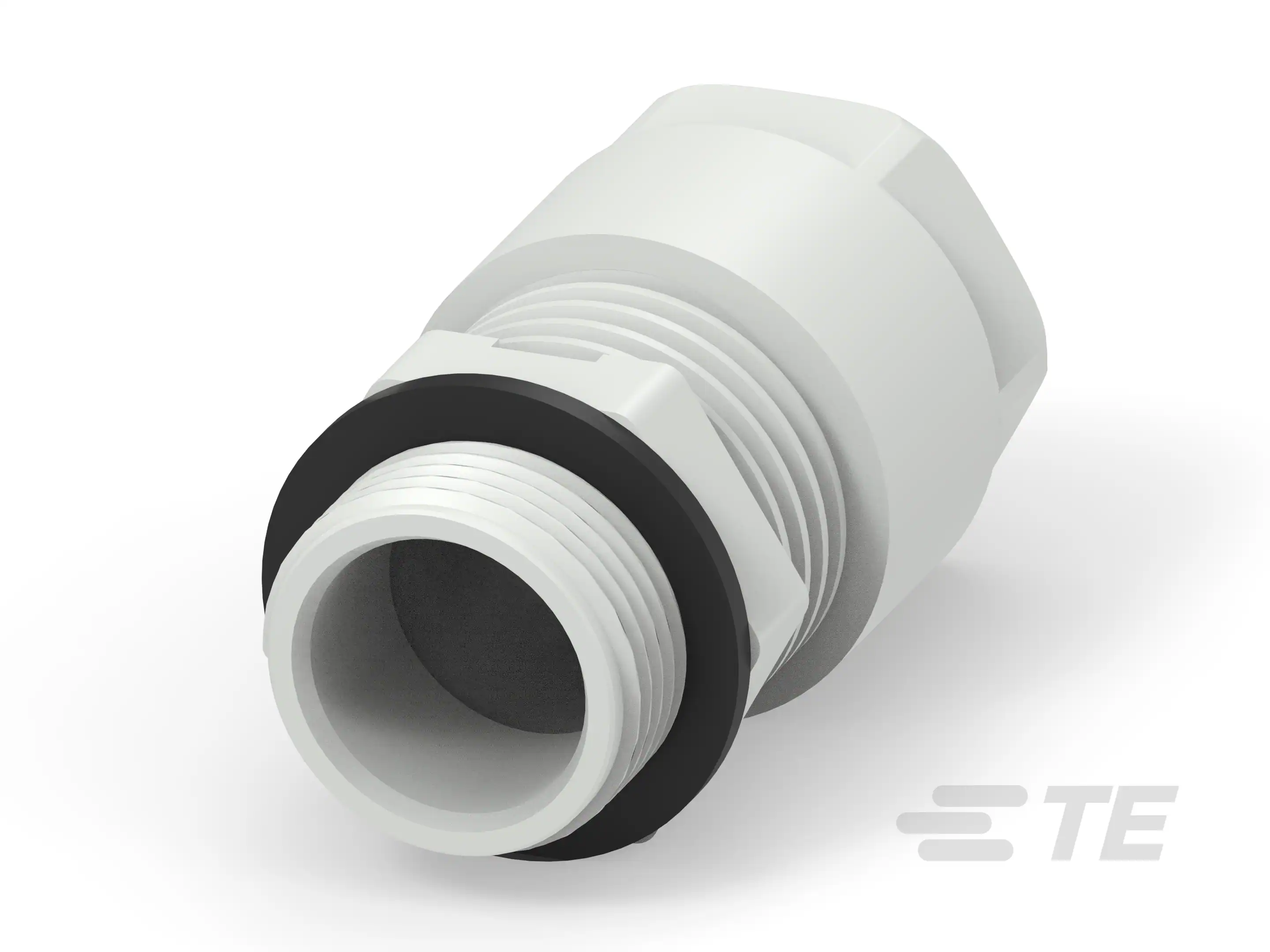

VENT CG,PA6,PG11,4-8,8,LGR-1-2490541-4

1-2490541-4

Active
TE Connectivity AMP Connectors

VENT CG,PA6,PG11,4-8,8,LGR

Find alt
VENT CG,PA6,PG11,4-8,8,LGR-1-2490541-4

1-2490541-4

Active
TE Connectivity AMP Connectors

VENT CG,PA6,PG11,4-8,8,LGR

Find alt

Description

General part information

1-2490541-4

Ventilated Cable Gland, PA 6, 4 – 8 mm Clamping Range, Light Gray, IP69

Technical Specifications

Parameters and characteristics for this part

Specification1-2490541-4
ColorGray
Ingress Protection DescriptionWater Resistant, Dust Tight, Waterproof
Ingress Protection IP RatingIP66, IP69, IP68
MaterialPolyamide (PA6), Nylon 6
Operating Temperature (Max)100 °C
Operating Temperature (Min)-40 °C
Outside Cable Diameter (Max)0.315 in
Outside Cable Diameter (Min)0.157 in
Thread Length0.315 in
Thread SizePG11
TypeCable Gland
