Description

General part information

GMCT20M0T0000/AA

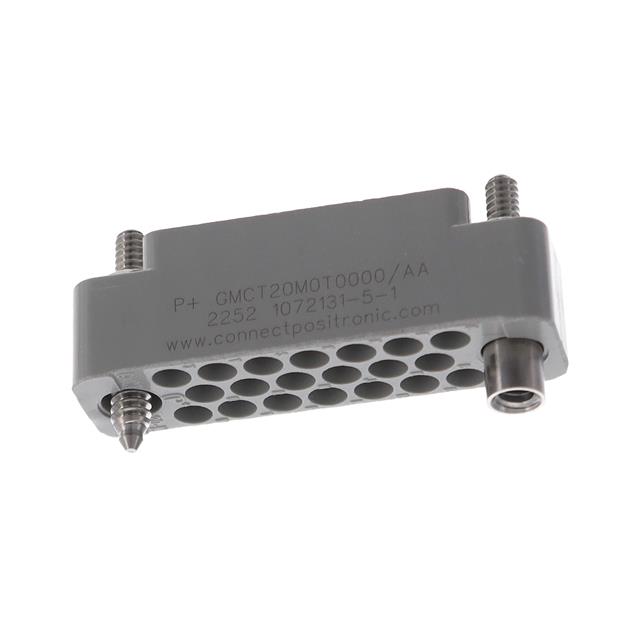

20 Rectangular Connectors - Housings Plug Gray 0.150" (3.81mm)

Technical Specifications

Parameters and characteristics for this part

SpecificationGMCT20M0T0000/AA
ColorGray
Connector StyleBackplane
Connector TypePlug, Housing for Male Contacts
Connector UsageHeader
Contact TerminationCrimp
Contact TypeMale Pin
FeaturesJackscrews, Jackscrew
Insulation MaterialDiallyl Phthalate (DAP), Glass Filled
Mounting TypeFree Hanging (In-Line)
Number of Positions20
Number of Rows3
Operating Temperature (Max)150 °C
Operating Temperature (Min)-65 °C
Pitch0.15 in
