2-2397137-1

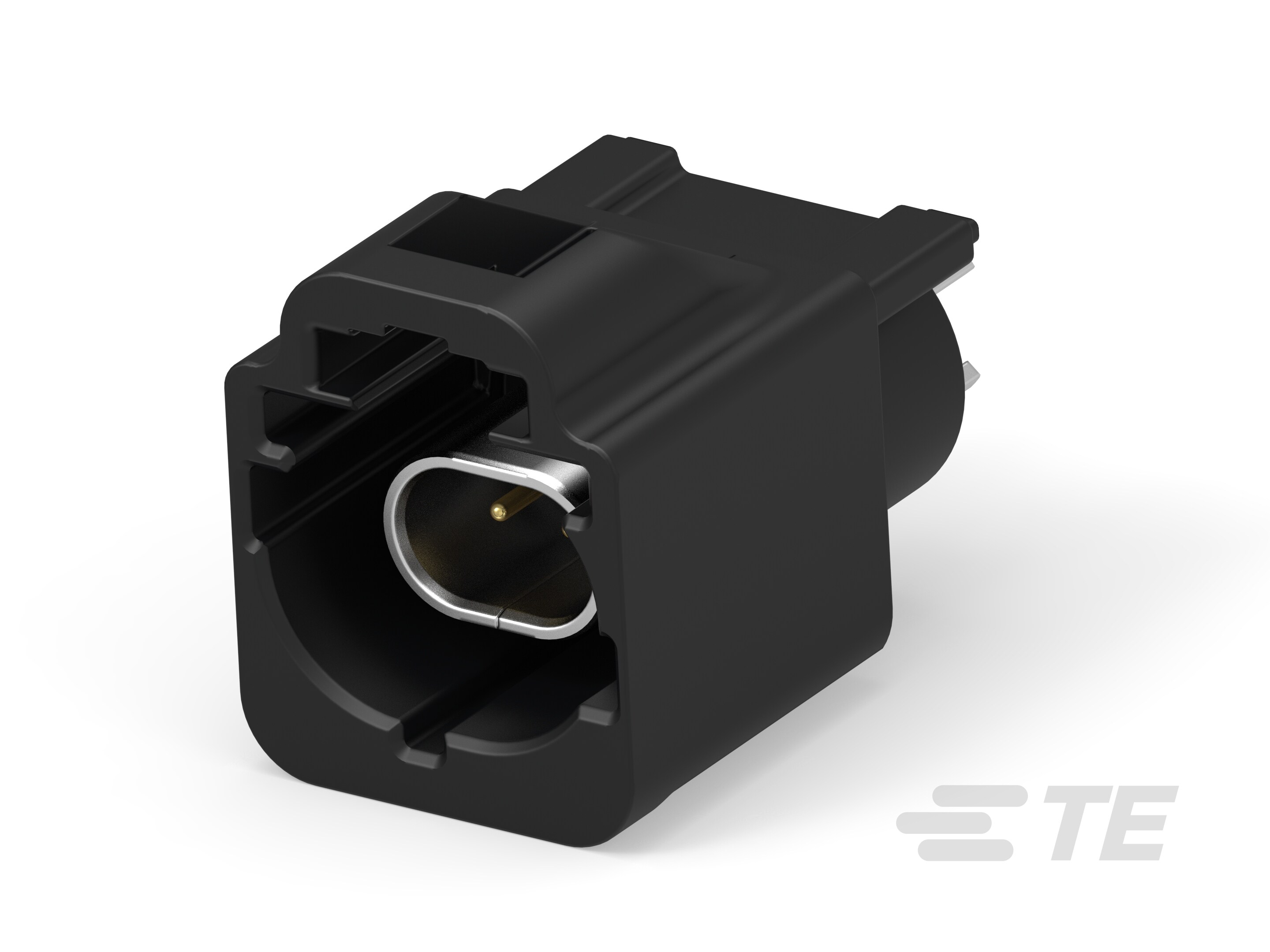

Wire-to-Board, Shielded, Vertical, 2 Position, Board Mount, A Code, 2 mm [.078 in] Centerline, -40 – 105 °C [-40 – 221 °F], Data Connectivity Headers
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2397137-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating | 2 A |
| Fastening Type | Latch Holder |
| Features | Board Guide |
| Insulation Color | Black |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.079 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 60 V |
