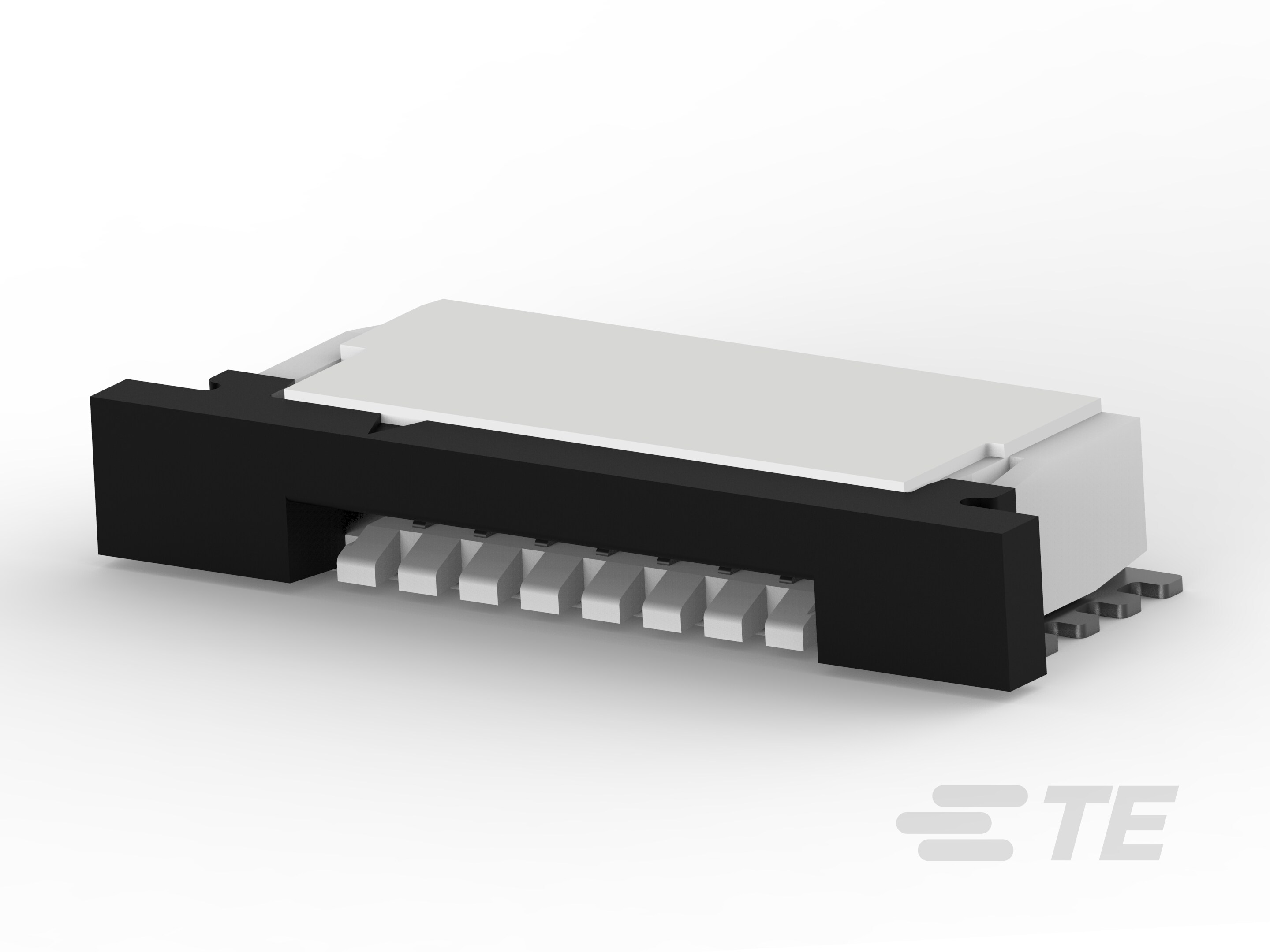

1MM FPC HORZ.BTTM CONT.ASS.7P-84952-7

84952-7

Active
TE Connectivity AMP Connectors

FFC / FPC BOARD CONNECTOR, 1 MM, 7 CONTACTS, RECEPTACLE, FPC SERIES, SURFACE MOUNT, BOTTOM

Find alt
1MM FPC HORZ.BTTM CONT.ASS.7P-84952-7

84952-7

Active
TE Connectivity AMP Connectors

FFC / FPC BOARD CONNECTOR, 1 MM, 7 CONTACTS, RECEPTACLE, FPC SERIES, SURFACE MOUNT, BOTTOM

Find alt

Description

General part information

84952-7

1 mm [.039 in] Centerline, Right Angle, Surface Mount, Stuffer Actuator, Tin (Sn), 7 Position, FPC Connectors

Technical Specifications

Parameters and characteristics for this part

Specification84952-7
Actuator MaterialNylon, Glass Filled, Polyamide (PA)
Cable End TypeStraight
Connector/Contact TypeContacts, Bottom
Contact FinishTin
Contact MaterialPhosphor Bronze
FeaturesSolder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness0.3 mm
Flat Flex TypeFPC
Height Above Board0.101 in
Housing MaterialGlass Filled, LCP, Liquid Crystal Polymer
Locking FeatureSlide Lock
Material Flammability RatingUL94 V-0
Mounting TypeRight Angle, Surface Mount
Number of Positions7
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Pitch0.039 in
TerminationSolder
Voltage Rating200 VDC
