Description
General part information

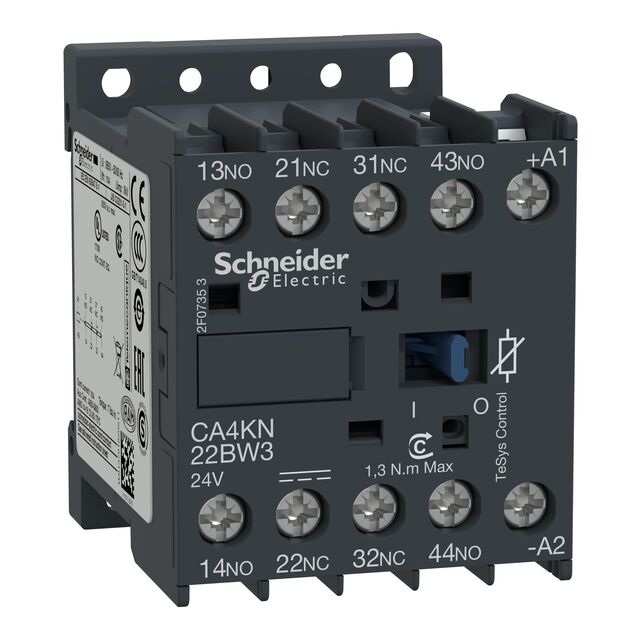

CA4KN22BW3
POWER RELAY, DPST-NO, DPST-NC, 24 VDC, TESYS CAK SERIES, DIN RAIL, PANEL, DC
Technical Specifications
Parameters and characteristics for this part
| Specification | CA4KN22BW3 |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | B, PST-2NO/2NC, Form, A, 2 |
| Contact Rating (Current) | 10 A |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 V |
| Operate Time | 40 ms |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Pin Count | 4 |
| Release Time | 35 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
