MK03V71R5BAT2A
ActiveKYOCERA AVX

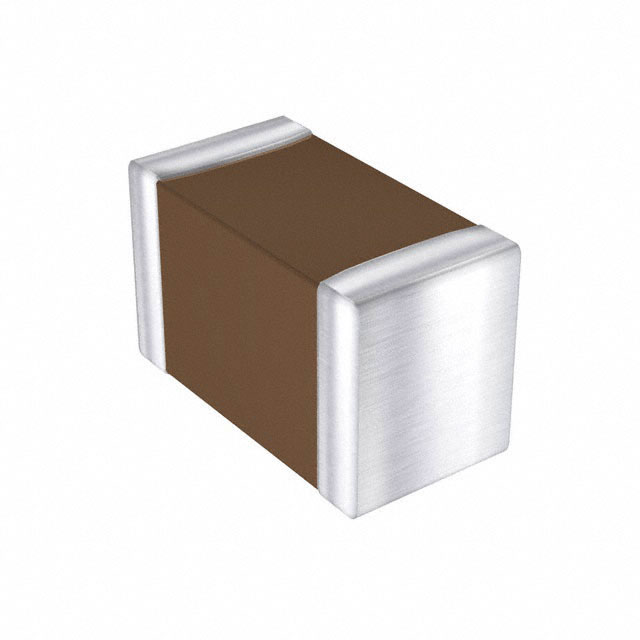

CAP CER 1.5PF 250V C0G/NP0 0603
MK03V71R5BAT2A
ActiveKYOCERA AVX
CAP CER 1.5PF 250V C0G/NP0 0603
Description
General part information
MK03V71R5BAT2A
1.5 pF ±0.1pF 250V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MK03V71R5BAT2A |
|---|---|
| Applications | General Purpose |
| Capacitance | 1.5 pF |
| Features | Ultra Low ESR |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension Length | 0.06 in |
| Size / Dimension Width | 0.03 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 0.036 in |
| Tolerance | 0.1 pF |
| Voltage - Rated | 250 V |
