2391516-4
ActiveTE Connectivity AMP Connectors

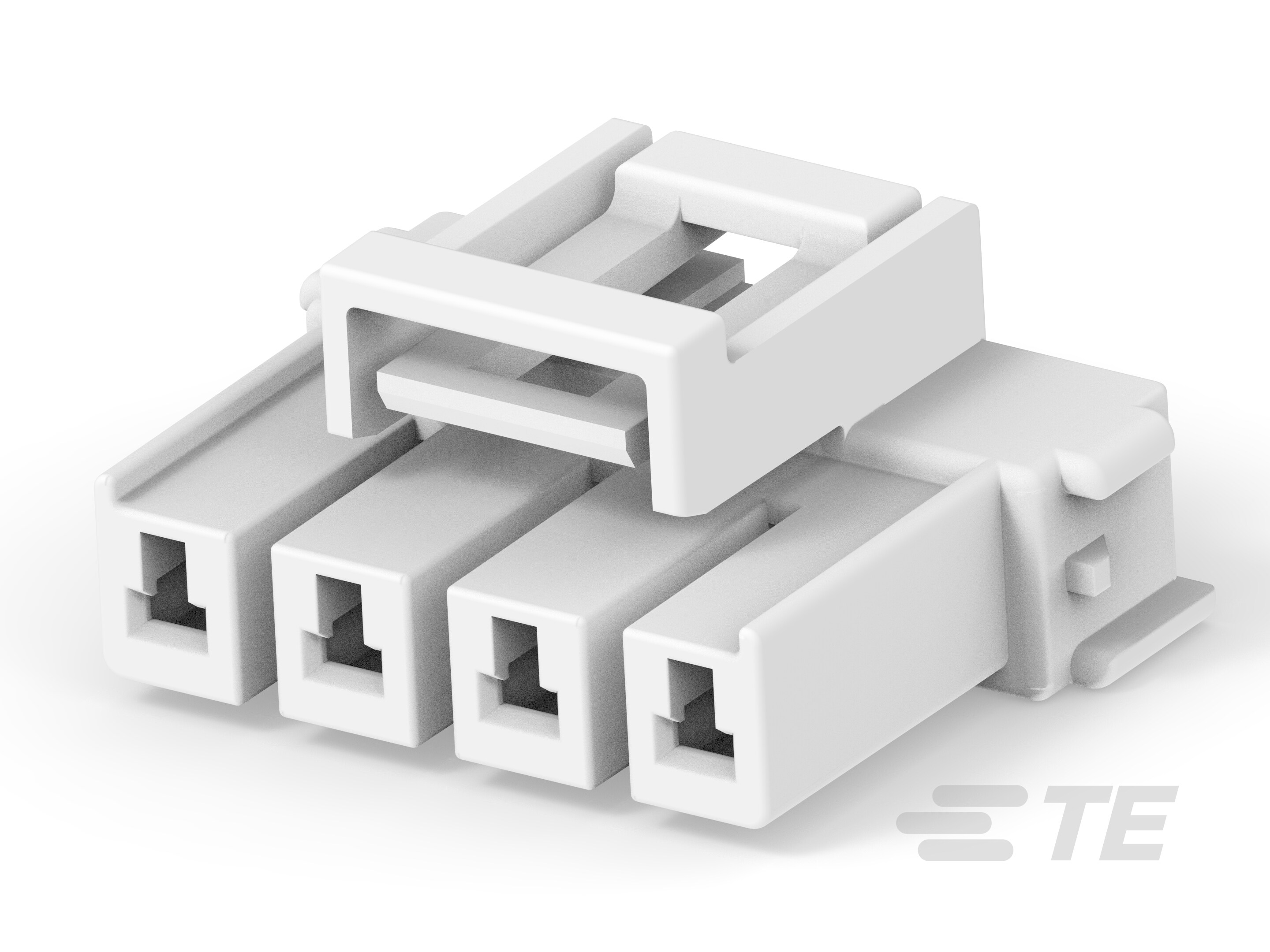

POWER DOUBLE LOCK PLUG HOUSING, 4P
2391516-4
ActiveTE Connectivity AMP Connectors
POWER DOUBLE LOCK PLUG HOUSING, 4P
Description
General part information
2391516-4
4 Position, Plug, Housing, Crimp, Wire-to-Wire, Pre-Tin, UL 94V-0, 5 mm [.197 in] Centerline, 1 Row, 250 VAC, Sealable, Wire & Cable, Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 2391516-4 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Glow Wire Compliant |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.197 in |
