1986718-6
ActiveTE Connectivity AMP Connectors

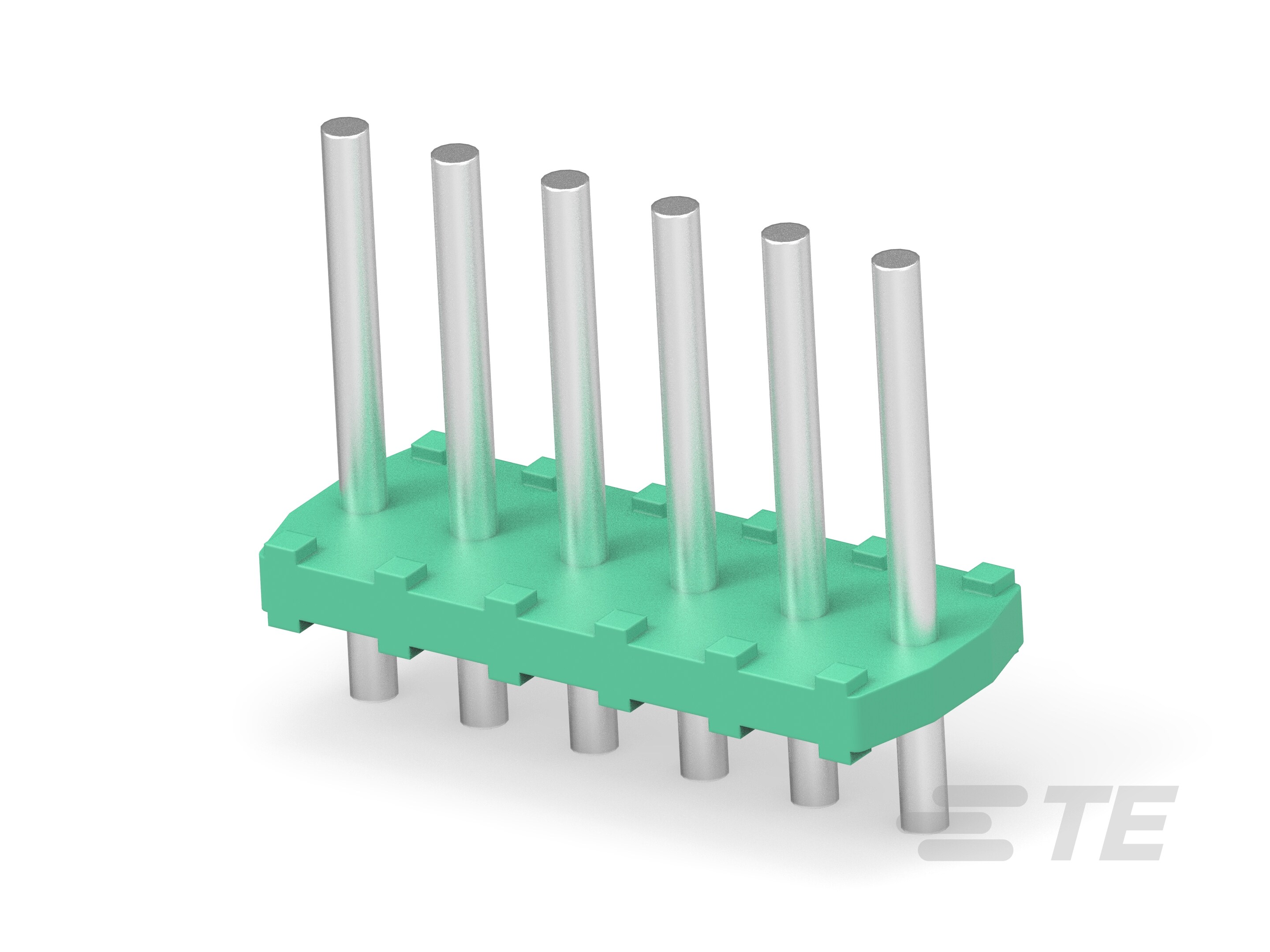

CONN UNSHROUDED HEADER HDR 6 POS 3.5MM SOLDER ST THRU-HOLE
1986718-6
ActiveTE Connectivity AMP Connectors
CONN UNSHROUDED HEADER HDR 6 POS 3.5MM SOLDER ST THRU-HOLE
Description
General part information
1986718-6
6 Position PCB Terminal Block, Header, Wire-to-Board, 3.5 mm [.138 in] Centerline, 1 Row, 14 – 26 AWG, .5 – 1.5 mm² Wire, 150 VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | 1986718-6 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 2 A |
| Header Orientation | Vertical |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 6 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Positions Per Level | 6 |
| Termination Style | Solder |
| Type | Male Pins, Unshrouded, Header |
| Voltage - UL | 150 V |
