N845-02M-4S-MG
ActiveEaton Tripp Lite
40/100/400G MULTIMODE 50/125 OM4
N845-02M-4S-MG
ActiveEaton Tripp Lite
40/100/400G MULTIMODE 50/125 OM4
Description
General part information
N845-02M-4S-MG

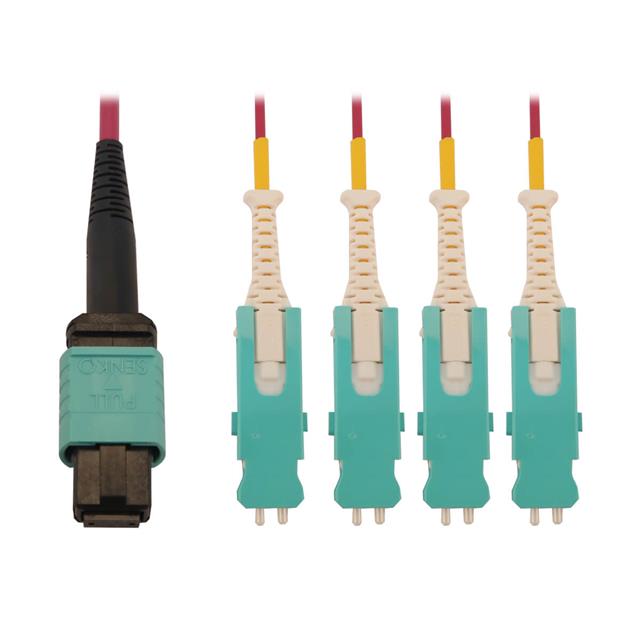

Cable Fiber Optic MTP To S-PC Duplex (4) 50/125 6.6' (2.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | N845-02M-4S-MG |
|---|---|
| 1st Connector | MTP |
| 2nd Connector | S-PC Duplex |
| 2nd Connector Count | 4 |
| Bend Radius | 10 mm |
| Cable Diameter | 0.12 " |
| Color - Cable | Magenta |
| Color - Connectors | Aqua, White, Black |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Insertion Loss | 0.2 dB |
| Insertion Loss (Alt) | 0.35 dB |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 6.6 ft |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Type | OM4, Multimode |
