134017-1
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 18AWG M5 CRIMP
134017-1
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 18AWG M5 CRIMP
Description
General part information
134017-1

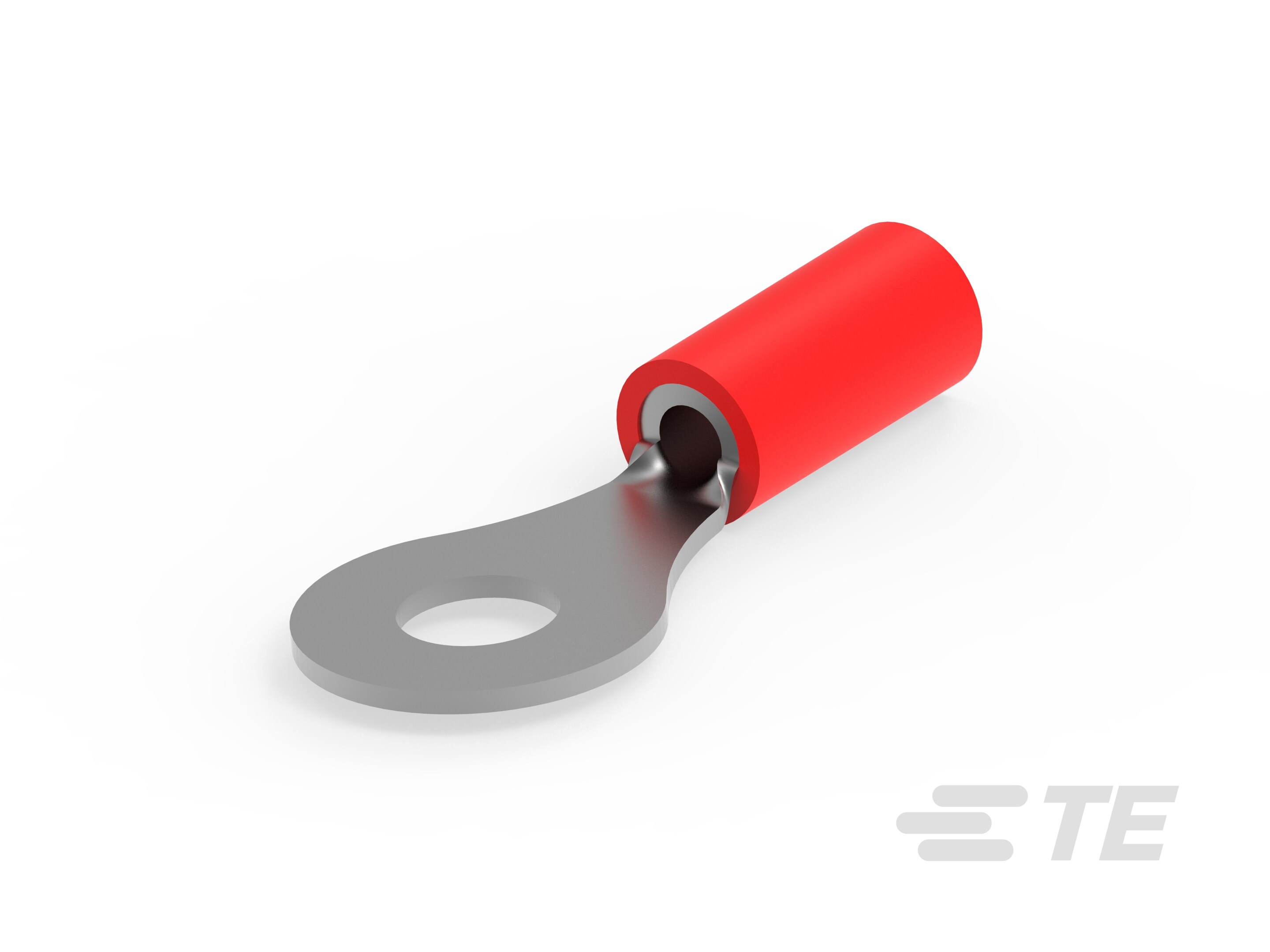

Closed Ring Tongue Terminal, 18 AWG, M5 Stud, 5.2 mm [.205 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG
Technical Specifications
Parameters and characteristics for this part
| Specification | 134017-1 |
|---|---|
| Color | White Stripe, Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Insulation Restriction |
| Insulation | Insulated |
| Length - Overall | 1.145 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M5 Stud, M5 |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.031 in |
| Width - Outer Edges | 0.469 in |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
