CX5032GB19200P0HEQZ1
ObsoleteKYOCERA AVX

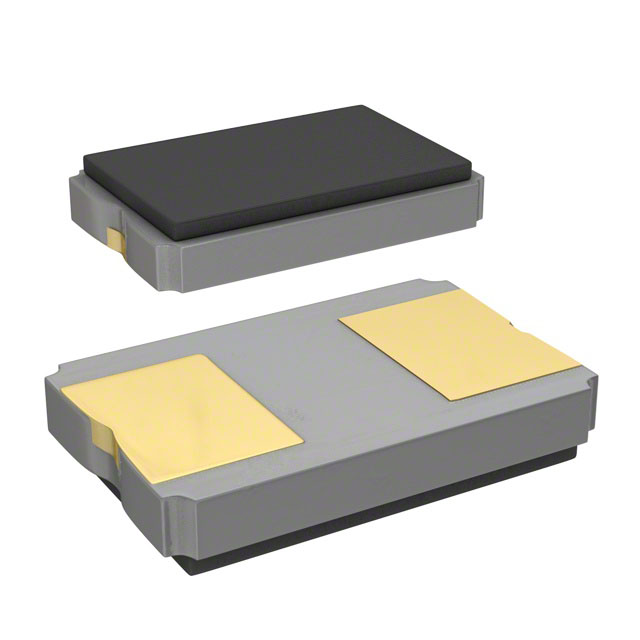

CRYSTAL 19.2000MHZ 18PF SMD
CX5032GB19200P0HEQZ1
ObsoleteKYOCERA AVX
CRYSTAL 19.2000MHZ 18PF SMD
Description
General part information
CX5032GB19200P0HEQZ1
19.2 MHz ±20ppm Crystal 18pF 100 Ohms 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CX5032GB19200P0HEQZ1 |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohm |
| Frequency | 19.2 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) | 0.047 in |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | No Lead, 2-SMD |
| Package Length | 5 mm |
| Package Name | 2-SMD |
| Package Width | 3.2 mm |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | MHz Crystal |
