FMSW1104
ActiveFairview Microwave

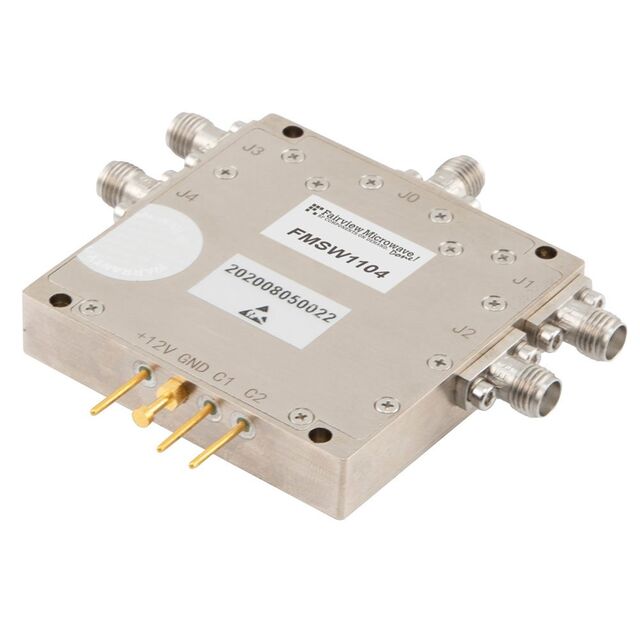

PIN DIODE SWITCH SMA SP4T 6GHZ
FMSW1104
ActiveFairview Microwave
PIN DIODE SWITCH SMA SP4T 6GHZ
Description
General part information
FMSW1104
RF Switch IC VSAT SP4T 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | FMSW1104 |
|---|---|
| Circuit | SP4T |
| Frequency Range (Max) | 6 GHz |
| Frequency Range (Min) | 0 Hz |
| IIP3 | 50 dBm |
| Impedance | 50 Ohm |
| Insertion Loss | 1.7 dB |
| Isolation | 30 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -45 °C |
| RF Type | VSAT |
| Test Frequency | 6 GHz |
| Topology | Reflective |
| Voltage - Supply | 12 VDC |
