B82748S6623N30
ActiveEPCOS - TDK Electronics
CMC 1.1MH 62A 3LN TH
B82748S6623N30
ActiveEPCOS - TDK Electronics
CMC 1.1MH 62A 3LN TH
Description
General part information
B82748S6623N30

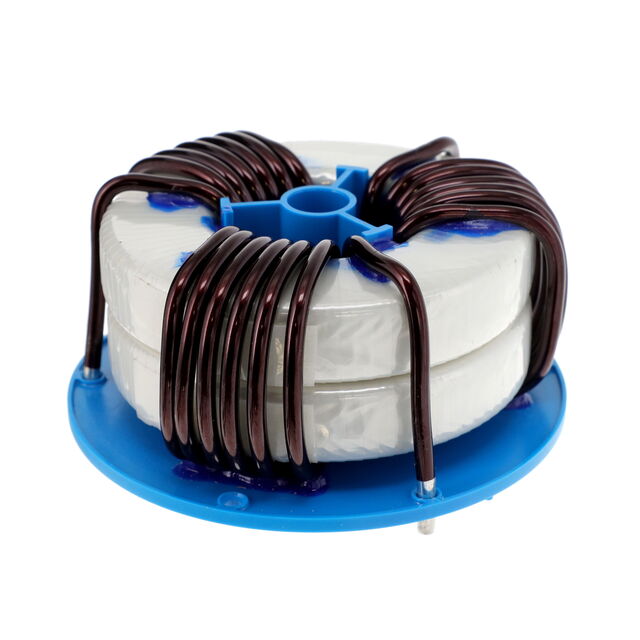

1.1 mH @ 10 kHz 3 Line Common Mode Choke Through Hole 62A DCR 1.6mOhm (Typ)
Technical Specifications
Parameters and characteristics for this part
| Specification | B82748S6623N30 |
|---|---|
| Current Rating (Max) | 62 A |
| DC Resistance (DCR) (Max) | 1.6 mOhm |
| DC Resistance (DCR) (Typ) | 1.6 mOhm |
| Filter Type | Power Line |
| Height (Max) | 2.126 in |
| Inductance | 1.1 mH |
| Mounting Type | Through Hole |
| Number of Lines | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6 PC Pin, Horizontal |
| Package Name | Horizontal |
| Pad Count | 6 PC Pin |
| Size / Dimension Diameter | 3.858 in |
| Voltage Rating - AC | 690V, 400V |
| Voltage Rating - AC | 690 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
