90B05ST

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Mounting Type	Circuit	Length [x]	Length [x]	Contact Finish	Mechanical Life	Voltage Rating	Current Rating (Amps)	Washable	Contact Material	Electrical Life	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch	Pitch [x]	Actuator Level	Termination Style	Body Material	Features
Grayhill Inc. 90B05T	Through Hole	SPST	14.48 mm	0.57 in	Gold	2000 Cycles	24 VDC	25 mA		Copper Alloy	2000 Steps	Slide (Standard)	85 °C	-40 °C	0.1 in	Full	2.54 mm	Flush, Recessed	PC Pin	Thermoplastic
Grayhill Inc. 90B05ST	Through Hole	SPST	14.48 mm	0.57 in	Gold	2000 Cycles	24 VDC	25 mA		Copper Alloy	2000 Steps	Slide (Standard)	85 °C	-40 °C	0.1 in	Full	2.54 mm	Flush, Recessed	PC Pin	Thermoplastic	Tape Seal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

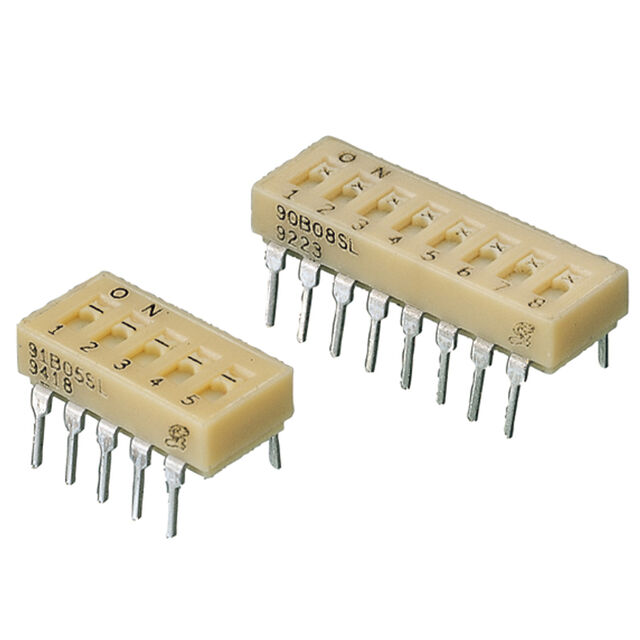

Dip Switch SPST 5 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
