GD25D05CKIGR

Active

GigaDevice Semiconductor (HK) Limited

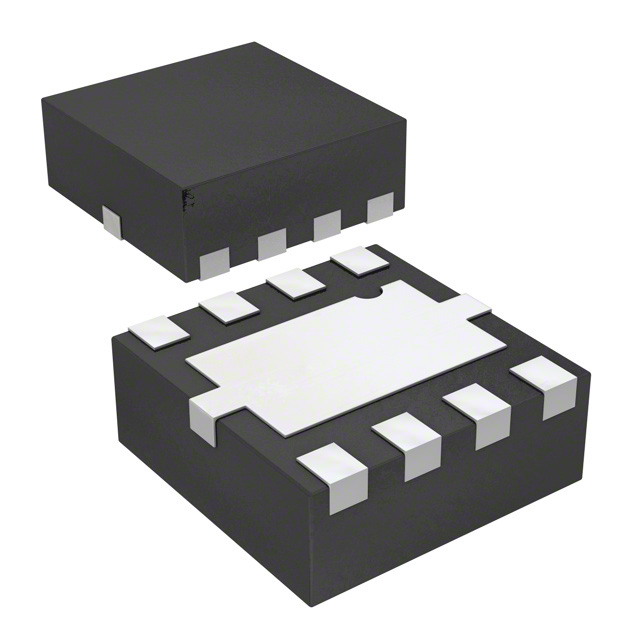

IC FLASH 512KBIT SPI/DUAL 8USON

Search across all available documentation for this part.

Active

GigaDevice Semiconductor (HK) Limited

IC FLASH 512KBIT SPI/DUAL 8USON

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GD25D05CKIGR	GD25D05 Series

Access Time	-	6 ns
Clock Frequency	100 MHz	100 - 104 MHz
Memory Format	FLASH	FLASH
Memory Interface	SPI - Dual I/O	SPI - Dual I/O
Memory Organization	64K x 8	64K x 8
Memory Size	64 kb	64 kb
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-XFDFN Exposed Pad	8-XFDFN Exposed Pad, 8-SOIC
Package / Case	-	3.9 mm
Package / Case	-	0.154 in
Supplier Device Package	8-USON (1.5x1.5)	8-USON (3x2), 8-USON (1.5x1.5), 8-SOP
Technology	FLASH - NOR	FLASH - NOR (SLC), FLASH - NOR
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	2.7 V	2.7 V
Write Cycle Time - Word, Page [custom]	4 ms	4 ms
Write Cycle Time - Word, Page [custom]	50 µs	50 - 100 µs

IC FLASH 512KBIT SPI/DUAL 8USON

Part	Access Time	Mounting Type	Clock Frequency	Supplier Device Package	Package / Case	Memory Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Organization	Memory Interface	Memory Format	Technology	Memory Size	Operating Temperature [Min]	Operating Temperature [Max]	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Package / Case [y]	Package / Case [x]
GigaDevice Semiconductor (HK) Limited GD25D05EEEGR	6 ns	Surface Mount	104 MHz	8-USON (3x2)	8-XFDFN Exposed Pad	Non-Volatile	2.7 V	3.6 V	64K x 8	SPI - Dual I/O	FLASH	FLASH - NOR (SLC)	64 kb	-40 °C	125 °C
GigaDevice Semiconductor (HK) Limited GD25D05CKIGR		Surface Mount	100 MHz	8-USON (1.5x1.5)	8-XFDFN Exposed Pad	Non-Volatile	2.7 V	3.6 V	64K x 8	SPI - Dual I/O	FLASH	FLASH - NOR	64 kb	-40 °C	85 °C	4 ms	50 µs
GigaDevice Semiconductor (HK) Limited GD25D05ETIGR	6 ns	Surface Mount	104 MHz	8-SOP	8-SOIC	Non-Volatile	2.7 V	3.6 V	64K x 8	SPI - Dual I/O	FLASH	FLASH - NOR (SLC)	64 kb	-40 °C	85 °C	4 ms	100 µs	3.9 mm	0.154 in
GigaDevice Semiconductor (HK) Limited GD25D05EKIGR	6 ns	Surface Mount	104 MHz	8-USON (1.5x1.5)	8-XFDFN Exposed Pad	Non-Volatile	2.7 V	3.6 V	64K x 8	SPI - Dual I/O	FLASH	FLASH - NOR (SLC)	64 kb	-40 °C	85 °C	4 ms	100 µs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.42
	Digi-Reel®	1	$ 0.42
	Tape & Reel (TR)	3000	$ 0.27

General part information

FLASH - NOR Memory IC 512Kbit SPI - Dual I/O 100 MHz 8-USON (1.5x1.5)
