Description

General part information

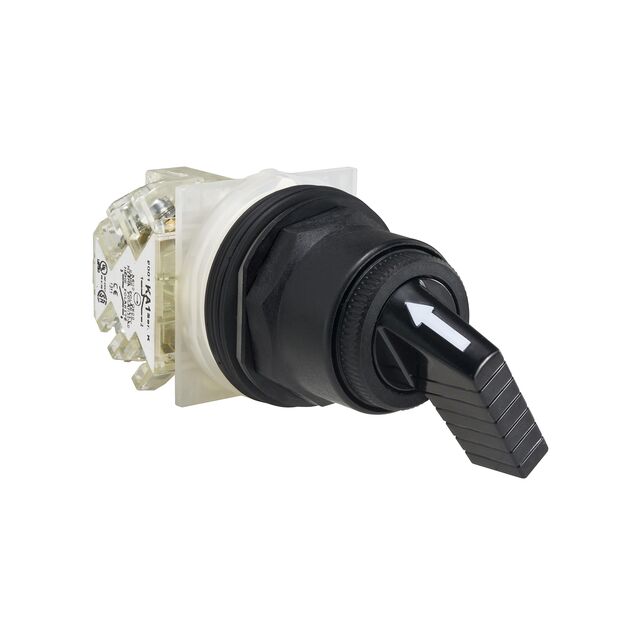

9001SKS11FBH13

Selector Switch 2 Position SPDT Panel Mount

Technical Specifications

Parameters and characteristics for this part

Specification9001SKS11FBH13
Approval AgencyCE, UL, CSA
CircuitSPDT
IlluminationNon-Illuminated
Ingress Protection DescriptionDust Tight, Water Resistant
Ingress Protection IP RatingIP66
Mounting TypePanel Mount
Number of Positions2
Operating Temperature (Max)70 °C
Operating Temperature (Min)-25 °C
Panel Cutout Diameter30 mm
Panel Cutout ShapeCircular
Switch FunctionOn-On
Termination StyleScrew Terminal
TypeStandard
