IRFBL3703

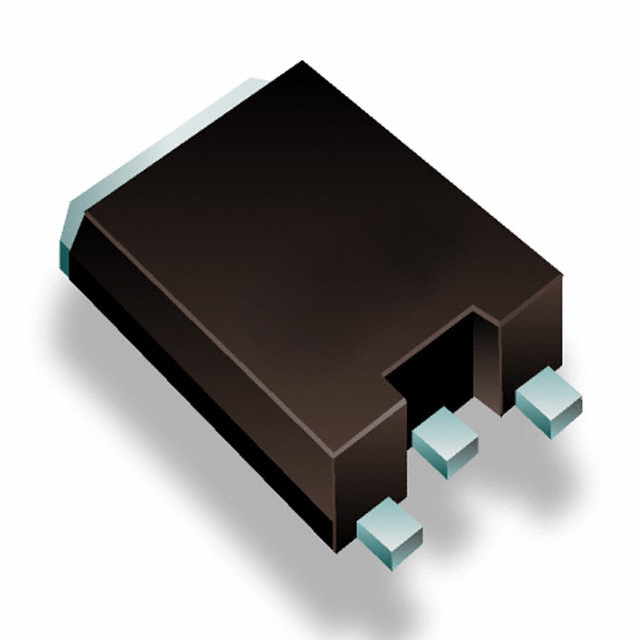

N-Channel 30 V 260A (Tc) 3.8W (Ta), 300W (Tc) Surface Mount SUPER D2-PAK
Technical Specifications
Parameters and characteristics for this part
| Specification | IRFBL3703 |
|---|---|
| Current - Continuous Drain (Id) (Tc) | 260 A |
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On) | 7 V |
| Drive Voltage (Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Max) | 209 nC |
| Input Capacitance (Ciss) (Max) | 8250 pF |
| Mounting Type | Surface Mount |
| Package / Case | Super D2-Pak |
| Package Name | SUPER D2-PAK |
| Power Dissipation (Max) | 300 W, 3.8 W |
| Rds On (Max) | 2.5 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) | 4 V |
