TAU-3019,12-B
ActiveAgilink Microwires
CABLE 12COND 30AWG WHT SHLD 500'
TAU-3019,12-B
ActiveAgilink Microwires
CABLE 12COND 30AWG WHT SHLD 500'
Description
General part information
TAU-3019,12-B

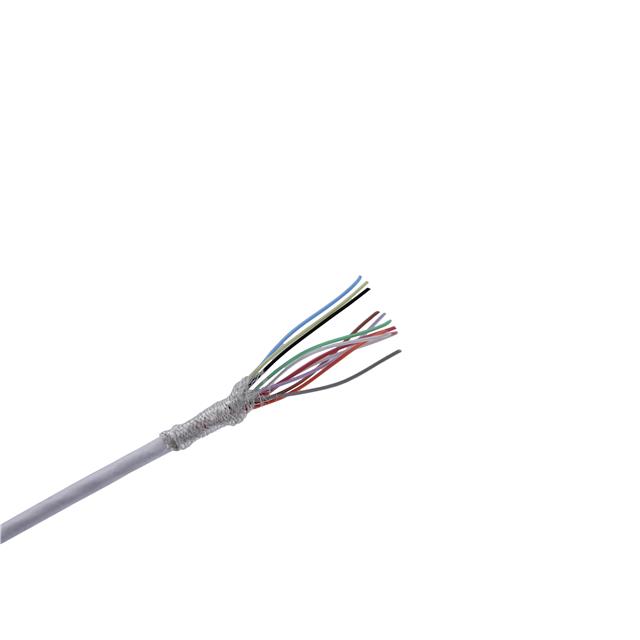

12 Conductor Multi-Conductor Cable White 30 AWG Braid 500.0' (152.4m)
Technical Specifications
Parameters and characteristics for this part
| Specification | TAU-3019,12-B |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Perfluoro Alkoxy (PFA) |
| Conductor Material | Copper, Silver Coated |
| Conductor Strand Count | 19 |
| Conductor Strand Diameter | 0.0025 in |
| Features | UL94-V0, UV Resistant, Temperature, Oil Resistant, Mechanical Resistant |
| Jacket (Insulation) Diameter | 0.123 in |
| Jacket (Insulation) Material | Perfluoro Alkoxy (PFA) |
| Jacket (Insulation) Thickness | 0.022 in |
| Jacket Color | White |
| Length | 500 ft |
| Number of Conductors | 12 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -196 °C |
| Shield Coverage | 92 % |
| Shield Material | Copper, Silver Coated |
| Shield Type | Braid |
| Voltage | 600 V |
| Wire Gauge | 30 AWG |
