1718230-2
ActiveTE Connectivity AMP Connectors
CONN RCPT HSNG MALE 6POS PNL MT
1718230-2
ActiveTE Connectivity AMP Connectors
CONN RCPT HSNG MALE 6POS PNL MT
Description
General part information
1718230-2

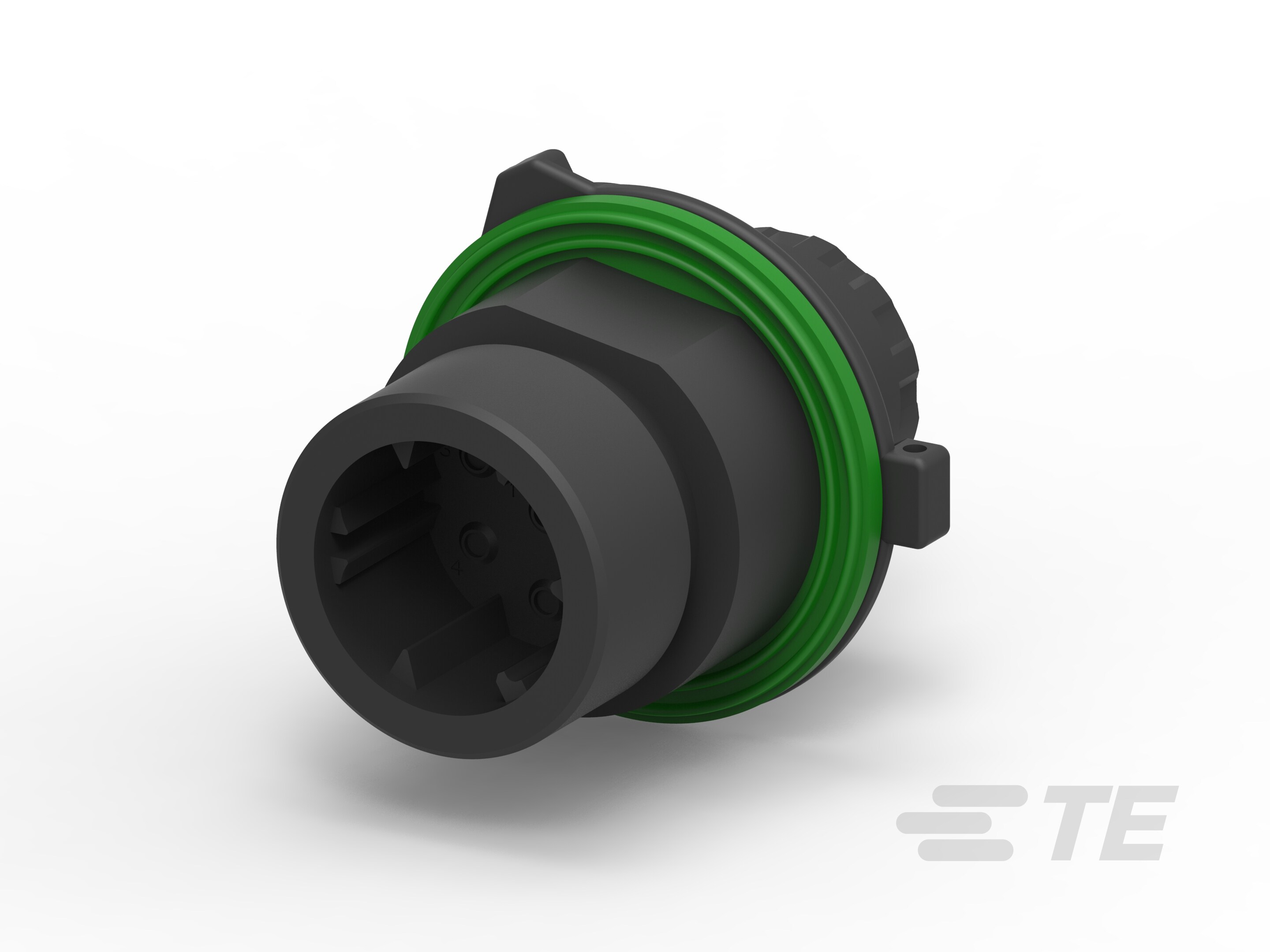

6 Position Housing, Housing for Male Terminals, Wire-to-Wire, Sealable, Black, Wire & Cable, Power, Cable Mount (Free-Hanging)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1718230-2 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Size | 1.5 mm |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Black |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP67, IP69K |
| Material Flammability Rating | UL94 HB |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Positions | 6 |
| Orientation | A |
| Shell Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
