T0005669
ActiveTEKTELIC Communications Inc.

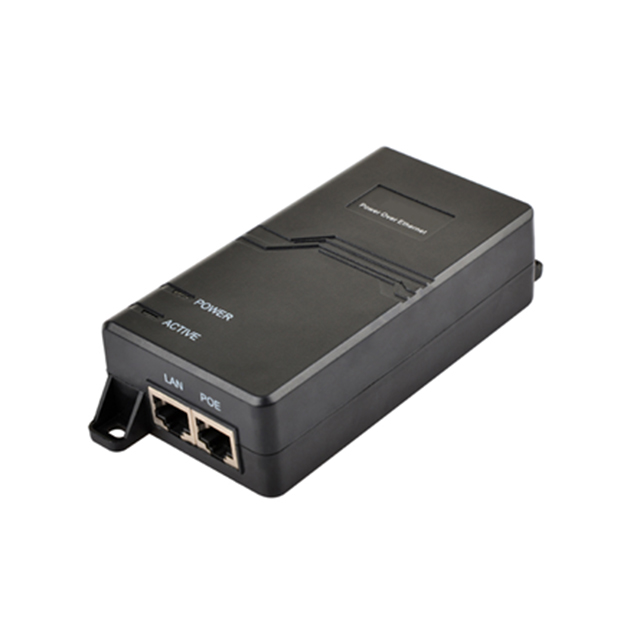

NA POE INJECTOR FOR LORA GATEWAY
T0005669
ActiveTEKTELIC Communications Inc.
NA POE INJECTOR FOR LORA GATEWAY
Description
General part information
T0005669
55V Power Over Ethernet (POE) 1 Port Passive Injector 10/100/1000 Mbps Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | T0005669 |
|---|---|
| Approval Agency | FCC, CE |
| Current - Output | 1 A |
| Efficiency | Level VI |
| Features | OCP, SCP, OTP, OVP |
| Input Connector | IEC 320-C6 (Power), RJ45 (Data) |
| Maximum Data Rate | 1000 Mbps |
| Minimum Data Rate | 10 Mbps |
| Mounting Type | Desktop |
| Number of Ports | 1 |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Power), RJ45 (Data |
| Power (Watts) - Per Port | 55 W |
| Size / Dimension Height | 1.42 in |
| Size / Dimension Length | 5.47 in |
| Size / Dimension Width | 2.48 in |
| Type | Passive Injector |
| Typical Data Rate | 100 Mbps |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output | 55 V |
