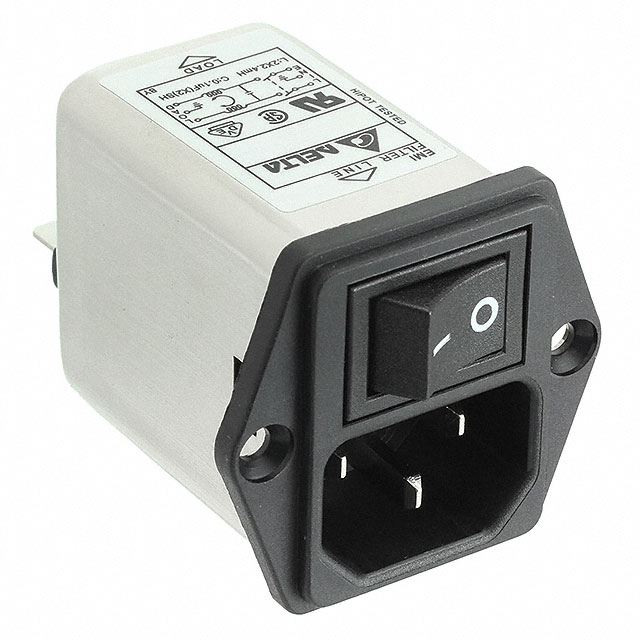

03BEEG3GM

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	03BEEG3GM

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	3 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.5 mm
Panel Cutout Dimensions [y]	39 mm
Switch Features	Switch On-Off
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Switch Features	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Current Rating - Appliance Inlet	Filter Type	Termination	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Connector Style	Mounting Type	Accomodates a Fuse	Connector Type
Delta Electronics 03BEEG3GM	Switch On-Off	115 VAC	250 VAC	3 A	Filtered (EMI, RFI) - Commercial, Medical	Quick Connect	28.5 mm	39 mm	CSA, UL, VDE	IEC 320-C14	Flange, Panel Mount		Receptacle, Male Blades - Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
