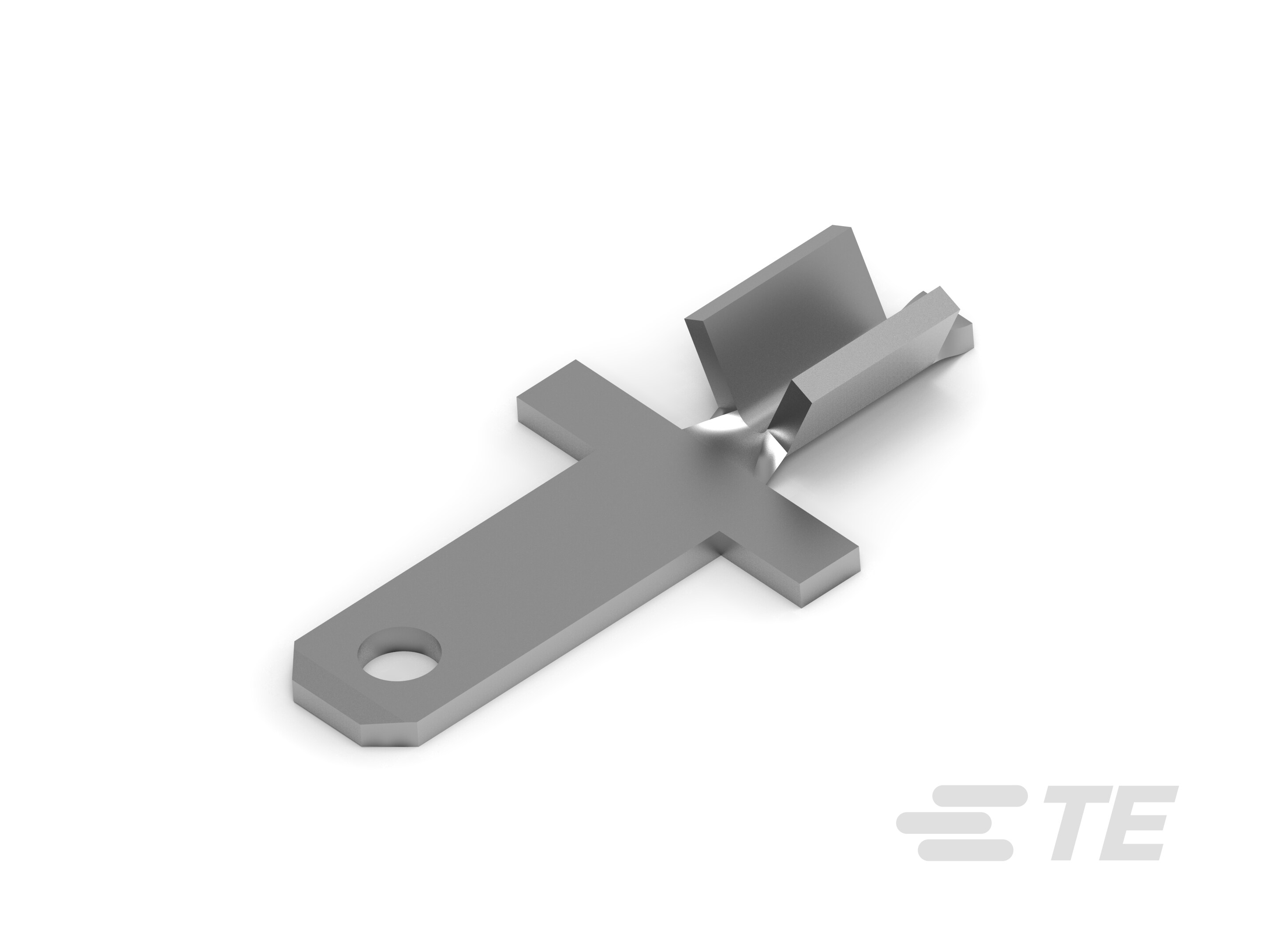

62887-1
ActiveTE Connectivity AMP Connectors
110 FAST TAB 26-22 020TPBR ROHS COMPLIANT: YES
62887-1
ActiveTE Connectivity AMP Connectors
110 FAST TAB 26-22 020TPBR ROHS COMPLIANT: YES
Description
General part information
FASTON 110 Series
Quick Disconnect Tab, 26 – 22 AWG, .12 – .4 mm² Wire, 254.1 – 642.5 CMA, 2.8 mm [.11 in] Tab Width, Straight, Brass, Tin Plating, Reel, FASTON 110
Technical Specifications
Parameters and characteristics for this part
| Specification | 62887-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Non-Insulated |
| Length - Overall | 0.49 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.28 in |
| Tab Thickness | 0.02 in |
| Tab Width | 0.11 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
