LCCA30685-FT5
ActivePasternack

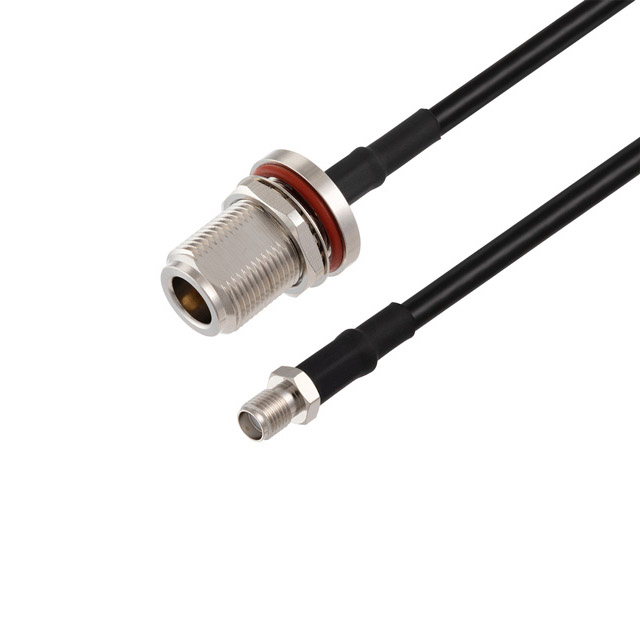

N FEMALE BULKHEAD TO SMA FEMALE
LCCA30685-FT5
ActivePasternack
N FEMALE BULKHEAD TO SMA FEMALE
Description
General part information
LCCA30685-FT5
Cable Assembly Coaxial SMA to N-Type RG-58 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30685-FT5 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 58 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 1 GHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
