T4171110402-001
ObsoleteTE Connectivity AMP Connectors

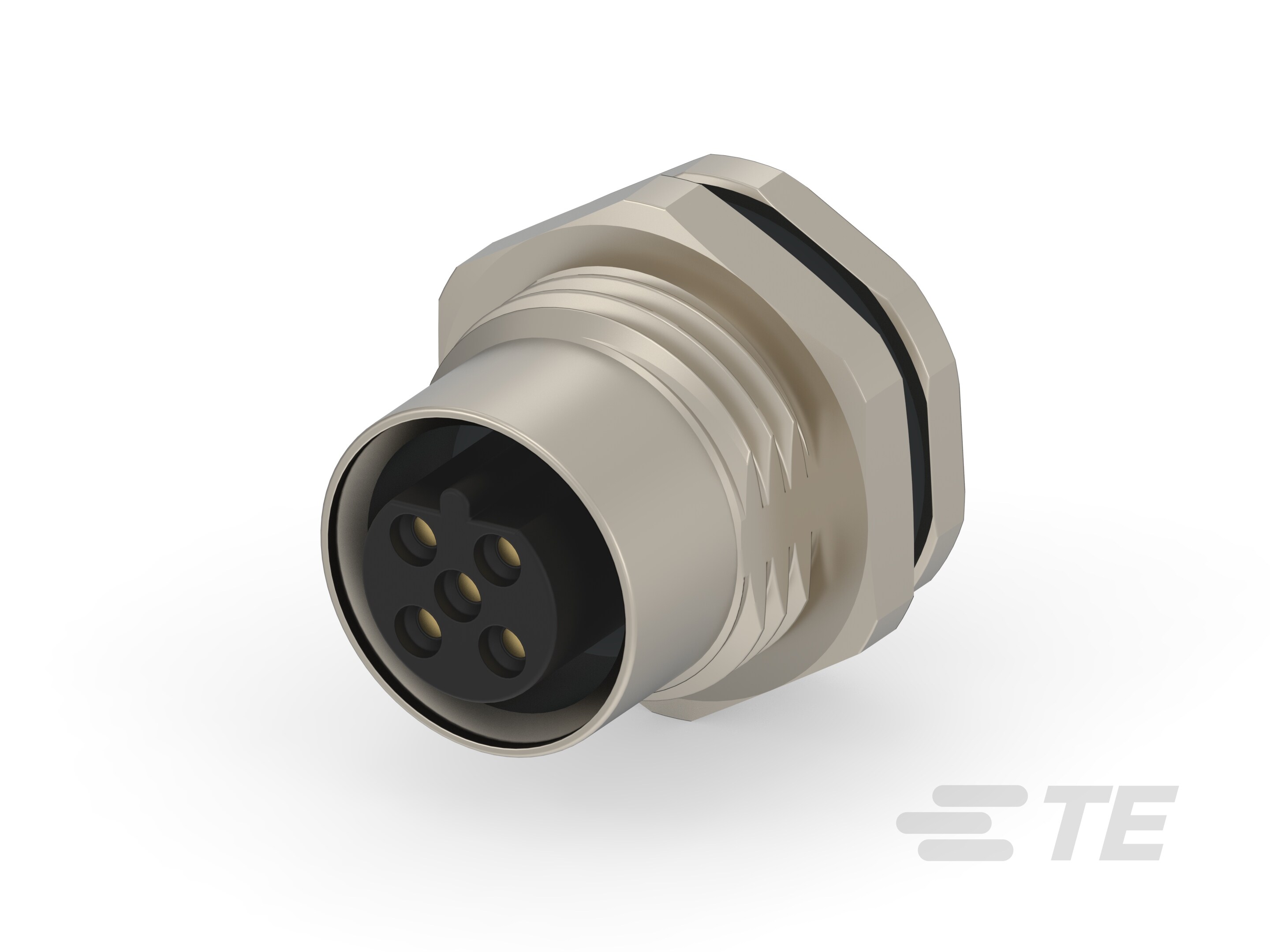

M12,REAR MOUNTING,FEMALE,B,2P,0.2M WIRE
T4171110402-001
ObsoleteTE Connectivity AMP Connectors
M12,REAR MOUNTING,FEMALE,B,2P,0.2M WIRE
Description
General part information
T4171110402-001
2 Position Circular Connector, Wire-to-Panel, Sealable, Wire & Cable, Signal, Panel Mount & Wire Mount, Reverse Gender, Nickel, M12 Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | T4171110402-001 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Panel Mount |
| 1st Connector Number of Positions | 5 positions |
| 1st Connector Number of Positions Loaded | 2 positions |
| 1st Connector Orientation | B |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Receptacle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Individual |
| Color | Blue, Brown |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 0.66 ft |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
