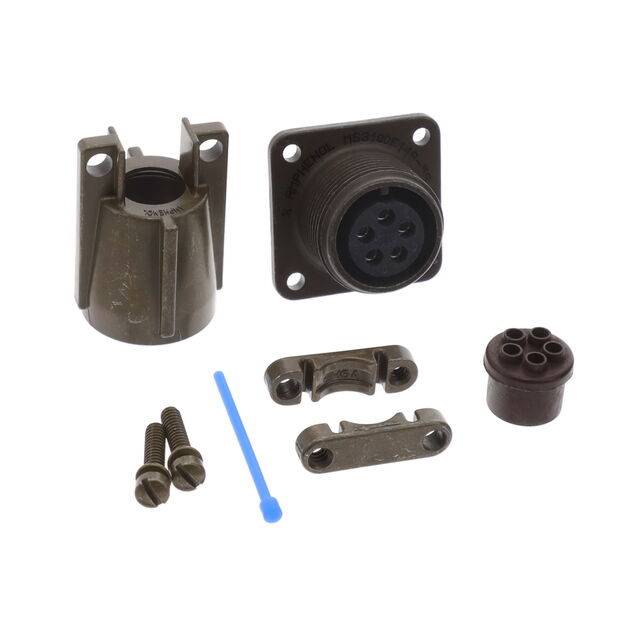

Specification	MS3100E14S-5S

Applications	Marine, Military
Cable Opening	0.406 in
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating	13 A
Fastening Type	Threaded
Features	Cable Clamp
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	5
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate, Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-5
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating (AC)	200 VAC
Voltage Rating (DC)	250 VDC

MS3100E14 Series

Part	Color	Current Rating	Qualification	Contact Finish - Mating	Contact Material	Connector Type	Orientation	Voltage Rating (AC)	Voltage Rating (DC)	Shielding	Features	Cable Opening	Applications	Shell Material	Shell Size - Insert	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Shell Finish	Mounting Type	Ingress Protection	Fastening Type	Insert Material	Primary Material	Number of Positions	Mounting Feature	Backshell Material	Plating
Amphenol Aerospace Operations MS3100E14-3S
Amphenol Aerospace Operations MS3100E14S-5P	Olive Drab	13 A	MIL-5015	Silver	Copper Alloy	Male Pins Receptacle	N (Normal)	200 VAC	250 VDC	Unshielded	Cable Clamp	0.406 in	Marine Military	Aluminum Alloy	14S-5	125 °C	-55 °C	Solder Cup	Cadmium Olive Drab Chromate	Panel Mount	Environment Resistant	Threaded	Neoprene	Metal	5	Flange
Amphenol Aerospace Operations MS3100E14S-7S
Amphenol Aerospace Operations MS3100E14-3P
Amphenol Aerospace Operations MS3100E14S-9P
Amphenol Aerospace Operations MS3100E14S-13S
Amphenol Aerospace Operations MS3100E14S-10P
Amphenol Aerospace Operations MS3100E14S-10S
Amphenol Aerospace Operations MS3100E14S-7P	Olive Drab	13 A	MIL-5015	Silver	Copper Alloy	Male Pins Receptacle	N (Normal)	500 VAC	700 VDC	Unshielded	Cable Clamp	0.406 in	Marine Military	Aluminum Alloy	14S-7	125 °C	-55 °C	Solder Cup	Cadmium Olive Drab Chromate	Panel Mount	Environment Resistant	Threaded	Neoprene	Metal	3	Flange
Amphenol Aerospace Operations MS3100E14S-2P	Olive Drab		MIL-5015	Silver	Copper Alloy	Male Pins Receptacle	N (Normal)			Unshielded	Cable Clamp	0.406 in	Marine Military	Aluminum Alloy	14S-2	125 °C	-55 °C	Solder Cup	Cadmium Olive Drab Chromate	Panel Mount	Environment Resistant	Threaded	Neoprene	Metal	4	Flange	Aluminum Alloy	Olive Drab Chromate over Cadmium
