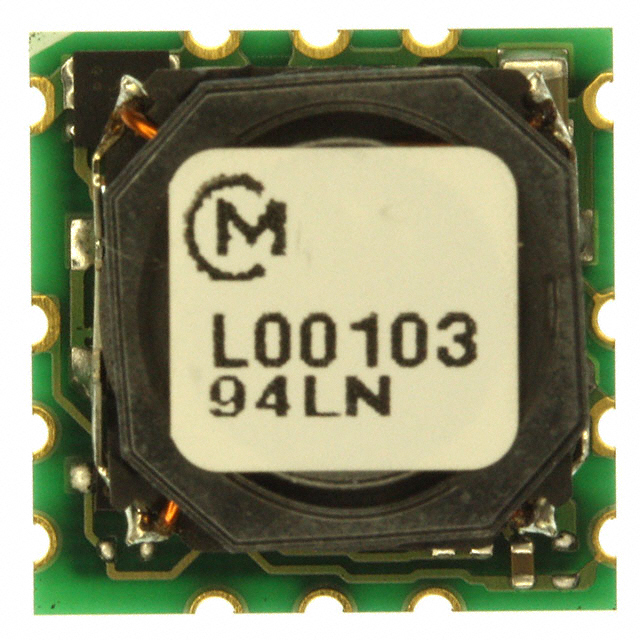

OKL-T/3-W12N-C
ActiveMurata Power Solutions Inc.
NON ISOLATED POL DC/DC CONVERTER, ITE, 15 W, 591 MV, 5.5 V, 3 A
Deep-Dive with AI
Search across all available documentation for this part.
OKL-T/3-W12N-C
ActiveMurata Power Solutions Inc.
NON ISOLATED POL DC/DC CONVERTER, ITE, 15 W, 591 MV, 5.5 V, 3 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | OKL-T/3-W12N-C | OKL-T Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active Low, Enable | Active Low, Enable, Active High |
| Current - Output (Max) [Max] | 3 A | 3 - 20 A |
| Efficiency | 93 % | 93 - 95.3 % |
| Features | OTP, UVLO, SCP, Remote On/Off, OCP | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 12-SMD Module | 10-SMD Module, 12-SMD Module, 12-BLGA Module |
| Power (Watts) | 15 W | 10 - 73 W |
| Size / Dimension | - | 12.2 mm |
| Size / Dimension | - | 6.1 mm |
| Size / Dimension [x] | 0.48 in | 0.48 - 0.8 " |
| Size / Dimension [x] | 12.2 mm | 12.2 - 20.3 mm |
| Size / Dimension [y] | 12.2 mm | 11.4 - 12.2 mm |
| Size / Dimension [y] | 0.48 in | 0.45 - 0.48 in |
| Size / Dimension [z] | 6.4 mm | 6.4 - 8.5 mm |
| Size / Dimension [z] | 0.25 " | 0.24 - 0.34 in |
| Type | Non-Isolated PoL Module | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V | 5.5 - 14 V |
| Voltage - Input (Min) [Min] | 4.5 V | 2.4 - 4.5 V |
| Voltage - Output 1 [Max] | 5.5 V | 3.3 - 5.5 V |
| Voltage - Output 1 [Min] | 0.591 V | 0.591 - 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
OKL-T Series
NON ISOLATED POL DC/DC CONVERTER, ITE, 1 OUTPUT, 66 W, 20 A
| Part | Type | Efficiency | Mounting Type | Applications | Voltage - Input (Min) [Min] | Control Features | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Number of Outputs | Features | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. OKL-T/20-W5N-C | Non-Isolated PoL Module | 94 % | Surface Mount | ITE (Commercial) | 2.4 V | Active Low, Enable | 73 W | 85 °C | -40 °C | 3.63 V | 0.6 V | 5.5 V | 20 A | 1 | OCP, OTP, Remote On/Off, SCP, UVLO | 10-SMD Module | 0.8 " | 11.4 mm | 20.3 mm | 0.45 in | 8.5 mm | 0.34 in | ||
Murata Power Solutions Inc. OKL-T/3-W5N-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. OKL-T/3-W12P-C | Non-Isolated PoL Module | 93 % | Surface Mount | ITE (Commercial) | 4.5 V | Active High, Enable | 15 W | 85 °C | -40 °C | 5.5 V | 0.591 V | 14 V | 3 A | 1 | OCP, OTP, Remote On/Off, SCP, UVLO | 12-SMD Module | 0.48 in | 12.2 mm | 12.2 mm | 0.48 in | 6.4 mm | 0.25 " | ||
Murata Power Solutions Inc. OKL-T/12-W5P-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. OKL-T/3-W12N-C | Non-Isolated PoL Module | 93 % | Surface Mount | ITE (Commercial) | 4.5 V | Active Low, Enable | 15 W | 85 °C | -40 °C | 5.5 V | 0.591 V | 14 V | 3 A | 1 | OCP, OTP, Remote On/Off, SCP, UVLO | 12-SMD Module | 0.48 in | 12.2 mm | 12.2 mm | 0.48 in | 6.4 mm | 0.25 " | ||
Murata Power Solutions Inc. OKL-T/3-W5N-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. OKL-T/6-W5P-C | Non-Isolated PoL Module | 93.5 % | Surface Mount | ITE (Commercial) | 2.4 V | Active High, Enable | 20 W | 85 °C | -40 °C | 3.3 V | 0.6 V | 5.5 V | 6 A | 1 | OCP, OTP, Remote On/Off, SCP, UVLO | 12-BLGA Module | 0.48 in | 12.2 mm | 12.2 mm | 0.48 in | 7.1 mm | 0.28 " | ||
Murata Power Solutions Inc. OKL-T/12-W5P-C | Non-Isolated PoL Module | 94 % | Surface Mount | ITE (Commercial) | 2.4 V | Active High, Enable | 44 W | 85 °C | -40 °C | 3.63 V | 0.6 V | 5.5 V | 12 A | 1 | OCP, OTP, Remote On/Off, SCP, UVLO | 10-SMD Module | 0.8 " | 11.4 mm | 20.3 mm | 0.45 in | 8.5 mm | 0.34 in | ||
Murata Power Solutions Inc. OKL-T/12-W5N-C | Non-Isolated PoL Module | 94 % | Surface Mount | ITE (Commercial) | 2.4 V | Active Low, Enable | 44 W | 85 °C | -40 °C | 3.63 V | 0.6 V | 5.5 V | 12 A | 1 | OCP, OTP, Remote On/Off, SCP, UVLO | 10-SMD Module | 0.8 " | 11.4 mm | 20.3 mm | 0.45 in | 8.5 mm | 0.34 in | ||
Murata Power Solutions Inc. OKL-T/6-W5P-C |
Description
General part information
OKL-T Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.591 ~ 5.5V 3A 4.5V - 14V Input
