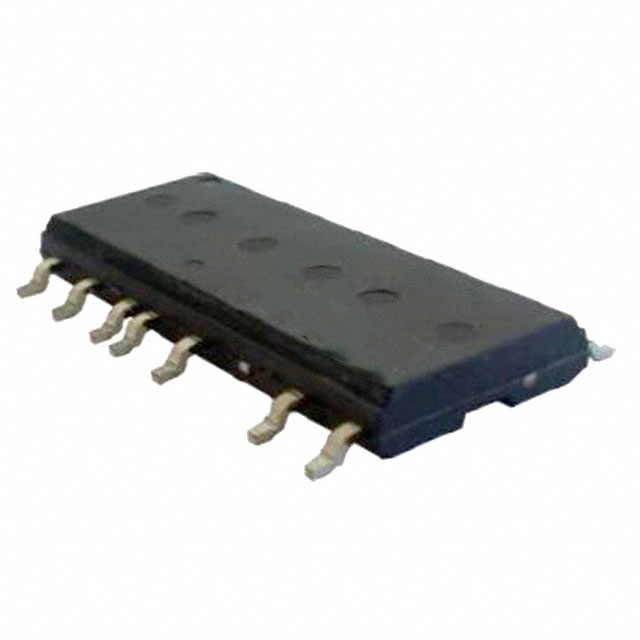

IRSM515-024PA

Unknown

Infineon Technologies

IC HALF BRIDGE DRIVER 1.6A 23SOP

Deep-Dive with AI

Search across all available documentation for this part.

IRSM515-024PA

Unknown

Infineon Technologies

IC HALF BRIDGE DRIVER 1.6A 23SOP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IRSM515-024PA

Applications	AC Motors
Current - Output / Channel	1.6 A
Current - Peak Output	7 A
Fault Protection	UVLO
Features	Bootstrap Circuit
Interface	Logic
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (3)
Package / Case	23-PowerSMD Module
Rds On (Typ)	1.8 Ohm
Supplier Device Package	23-SOP
Technology	UMOS
Voltage - Load [Max]	200 V
Voltage - Supply [Max]	16.5 V
Voltage - Supply [Min]	13.5 V

IRSM515 Series

Part	Interface	Technology	Fault Protection	Features	Voltage - Load [Max]	Output Configuration	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Rds On (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Load Type	Applications	Supplier Device Package	Current - Output / Channel	Current - Peak Output	Voltage - Load	Current - Output / Channel [custom]
Infineon Technologies IRSM515-024PA	Logic	UMOS	UVLO	Bootstrap Circuit	200 V	Half Bridge (3)	23-PowerSMD Module	13.5 V	16.5 V	1.8 Ohm	150 °C	-40 °C	Surface Mount	Inductive	AC Motors	23-SOP	1.6 A	7 A
Infineon Technologies IRSM515-025PA	Logic	UMOS	UVLO	Bootstrap Circuit		Half Bridge (3)	32-PowerSMD Module 23 Leads	13.5 V	16.5 V	3 Ohm	150 °C	-40 °C	Surface Mount	Inductive	AC Motors	23-SOP	1.5 A	11 A	400 V
Infineon Technologies IRSM515-024DA2	Logic	UMOS	UVLO	Bootstrap Circuit	200 V	Half Bridge (3)	23 Leads 32-PowerDIP Module	13.5 V	16.5 V	1.8 Ohm	150 °C	-40 °C	Through Hole	Inductive	AC Motors	23-DIP	1.6 A	7 A
Infineon Technologies IRSM515-065DA	Logic	UMOS	UVLO	Bootstrap Circuit		Half Bridge (3)	23-DIP Module	13.5 V	16.5 V	1 Ohm	150 °C	-40 °C	Through Hole	Inductive	AC Motors	23-DIP	2.6 A	15 A	400 V
Infineon Technologies IRSM515-065DA2AKMA1
Infineon Technologies IRSM515-025PA	Logic	UMOS	UVLO	Bootstrap Circuit		Half Bridge (3)	23-PowerSMD Module	13.5 V	16.5 V	3 Ohm	150 °C	-40 °C	Surface Mount	Inductive	AC Motors	23-SOP	1.5 A	11 A	400 V
Infineon Technologies IRSM515-015PA	Logic	UMOS	UVLO	Bootstrap Circuit		Half Bridge (3)	23-PowerSMD Module	13.5 V	16.5 V	5 Ohm	150 °C	-40 °C	Surface Mount	Inductive	AC Motors	23-SOP		9 A	400 V	1.2 A
Infineon Technologies IRSM515-065PA	Logic	UMOS	UVLO	Bootstrap Circuit		Half Bridge (3)	23-PowerSMD Module	13.5 V	16.5 V	1 Ohm	150 °C	-40 °C	Surface Mount	Inductive	AC Motors	23-SOP	2.6 A	15 A	400 V
Infineon Technologies IRSM515-015DA2	Logic	UMOS	UVLO	Bootstrap Circuit		Half Bridge (3)	23-DIP Module	13.5 V	16.5 V	5 Ohm	150 °C	-40 °C	Through Hole	Inductive	AC Motors	23-DIPA		9 A	400 V	1.2 A
Infineon Technologies IRSM515-035PA	Logic	UMOS	UVLO	Bootstrap Circuit		Half Bridge (3)	23-PowerSMD Module	13.5 V	16.5 V	1.8 Ohm	150 °C	-40 °C	Surface Mount	Inductive	AC Motors	23-SOP	2.1 A	15 A	400 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

IRSM515 Series

Half Bridge (3) Driver AC Motors UMOS 23-SOP

Documents

Technical documentation and resources

No documents available
