Specification	FOLC-145-L2-S-Q-LC

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Type	Female Socket
Current Rating (Per Contact)	2.6 A
Fastening Type	Push-Pull
Features	Board Lock
Insulation Color	Black
Insulation Height	0.178 in
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	180
Number of Positions Loaded	All
Number of Rows	4
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.05 in
Row Spacing - Mating	0.05 in
Style	Board
Termination	Solder

FOLC Series

Part	Row Spacing - Mating	Features	Fastening Type	Contact Finish Thickness - Mating	Insulation Height	Current Rating (Per Contact)	Contact Type	Contact Finish - Mating	Contact Finish - Post	Number of Positions Loaded	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Number of Positions	Insulation Color	Style	Contact Length - Post	Mounting Type	Termination	Pitch - Mating	Number of Rows	Connector Type	Insulation Material	Contact Shape	Contact Material
Samtec Inc. FOLC-115-04-S-Q-LC	0.05 in	Board Lock	Push-Pull	30 µin	0.18 in	2.6 A	Female Socket	Gold	Tin	All	125 °C	-55 °C	UL94 V-0	60	Black	Board	0.12 in	Through Hole	Solder	0.05 in	4	Receptacle

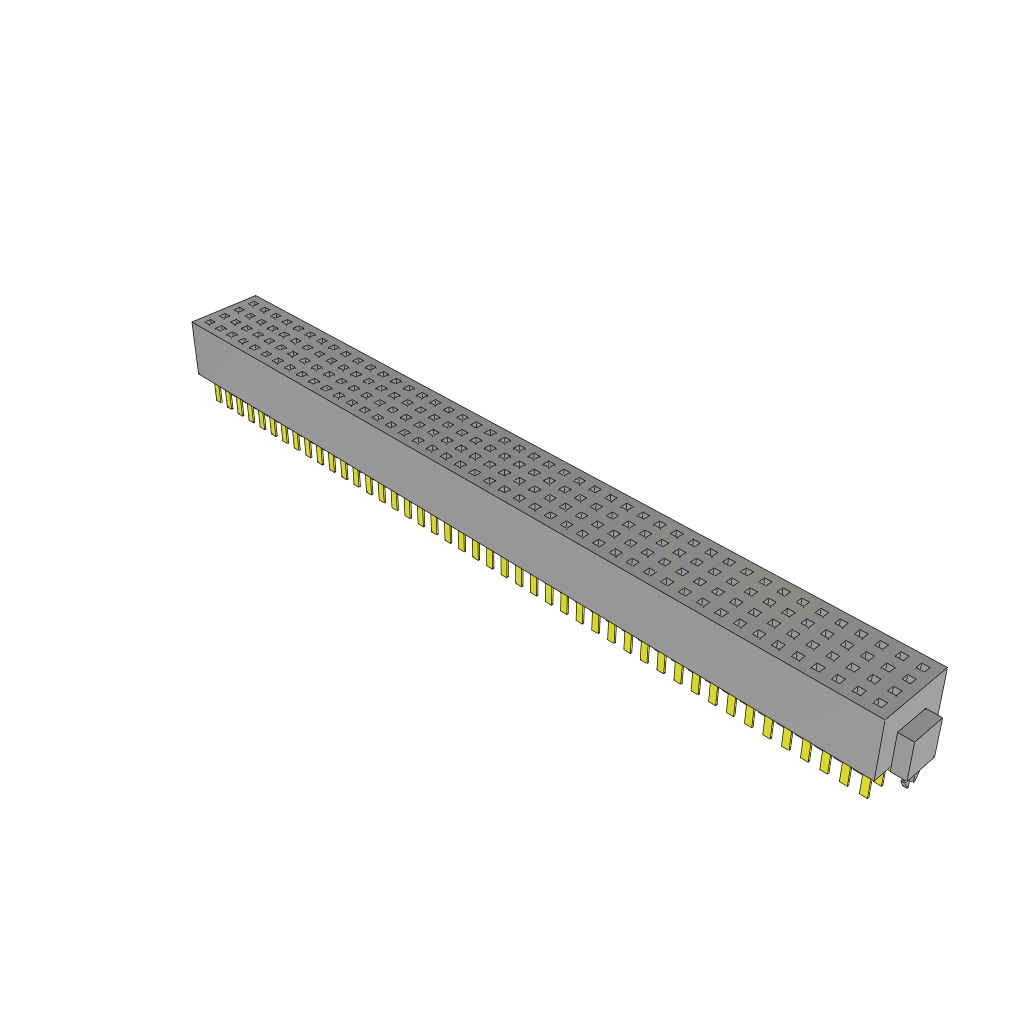

Samtec Inc. FOLC-145-L1-L-Q-LC	0.05 in	Board Lock	Push-Pull	10 µin	0.18 in	2.6 A	Female Socket	Gold	Tin	All	125 °C	-55 °C	UL94 V-0	180	Black	Board	0.075 in	Through Hole	Solder	0.05 in	4	Receptacle
Samtec Inc. FOLC-135-L2-S-Q	0.05 in		Push-Pull	30 µin	0.178 in	2.6 A	Female Socket	Gold	Tin	All	125 °C	-55 °C	UL94 V-0	140	Black	Board		Surface Mount	Solder	0.05 in	4	Receptacle
Samtec Inc. FOLC-120-01-S-Q-P	0.05 in	Pick and Place	Push-Pull	30 µin	0.18 in	2.6 A	Female Socket	Gold	Tin	All	125 °C	-55 °C	UL94 V-0	80	Black	Board	0.075 in	Through Hole	Solder	0.05 in	4	Receptacle
Samtec Inc. FOLC-125-L4-S-Q	0.05 in		Push-Pull	30 µin	0.18 in	2.6 A	Female Socket	Gold	Tin	All	125 °C	-55 °C	UL94 V-0	100	Black	Board	0.12 in	Through Hole	Solder	0.05 in	4	Receptacle
Samtec Inc. FOLC-125-L2-S-Q-P	0.05 in	Pick and Place	Push-Pull	30 µin	0.178 in	2.6 A	Female Socket	Gold	Tin	All	125 °C	-55 °C	UL94 V-0	100	Black	Board		Surface Mount	Solder	0.05 in	4	Receptacle	Liquid Crystal Polymer (LCP)	Square	Beryllium Copper
Samtec Inc. FOLC-140-01-S-Q	0.05 in		Push-Pull	30 µin	0.18 in	2.6 A	Female Socket	Gold	Tin	All	125 °C	-55 °C	UL94 V-0	160	Black	Board	0.075 in	Through Hole	Solder	0.05 in	4	Receptacle
Samtec Inc. FOLC-150-02-S-Q-P	0.05 in	Pick and Place	Push-Pull	30 µin	0.178 in	2.6 A	Female Socket	Gold	Tin	All	125 °C	-55 °C	UL94 V-0	200	Black	Board		Surface Mount	Solder	0.05 in	4	Receptacle	Liquid Crystal Polymer (LCP)	Square	Beryllium Copper
Samtec Inc. FOLC-115-M1-S-Q	0.05 in		Push-Pull	30 µin	0.185 in	2.6 A	Female Socket	Gold	Tin	All	125 °C	-55 °C	UL94 V-0	60	Black	Board	0.075 in	Surface Mount Through Hole	Solder	0.05 in	4	Receptacle
Samtec Inc. FOLC-125-L2-S-Q-P-TR	0.05 in	Pick and Place	Push-Pull	30 µin	0.178 in	2.6 A	Female Socket	Gold	Tin	All	125 °C	-55 °C	UL94 V-0	100	Black	Board		Surface Mount	Solder	0.05 in	4	Receptacle	Liquid Crystal Polymer (LCP)	Square	Beryllium Copper
