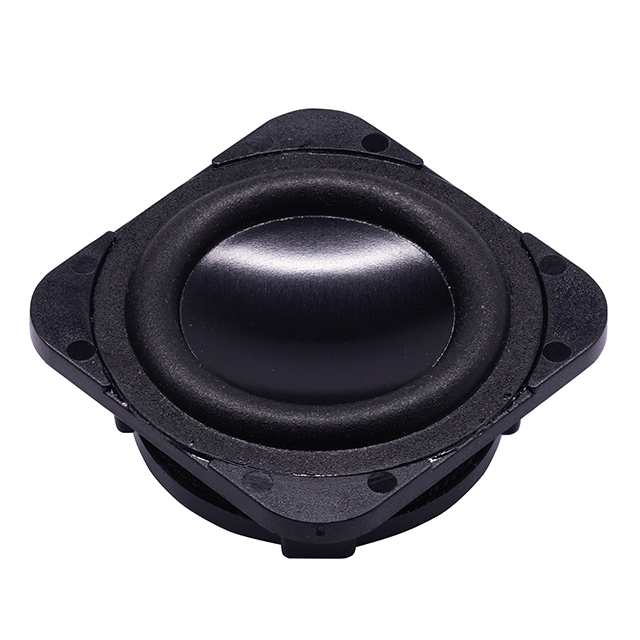

CMSM-3116-34
ActiveSame Sky (Formerly CUI Devices)
16.6MM, 3W, 4OHM, 280HZ
CMSM-3116-34
ActiveSame Sky (Formerly CUI Devices)
16.6MM, 3W, 4OHM, 280HZ
Description
General part information
CMSM-3116-34
4 Ohms General Purpose Speaker 3 W 224 Hz ~ 20 kHz Top Round, Square Frame
Technical Specifications
Parameters and characteristics for this part
| Specification | CMSM-3116-34 |
|---|---|
| Distortion Rating | 5 % |
| Efficiency - dBA | 98 dBA |
| Efficiency - Testing Length | 100 mm |
| Efficiency - Testing Power | 3 W |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 280 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 224 Hz |
| Height - Seated (Max) | 0.604 in |
| Impedance | 4 Ohms |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Material - Cone | Aluminum (AI), Rubber |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Port Location | Top |
| Power - Max | 3.5 W |
| Power - Rated | 3 W |
| Shape | Round, Square Frame |
| Size / Dimension Length | 1.244 in |
| Size / Dimension Width | 1.244 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
