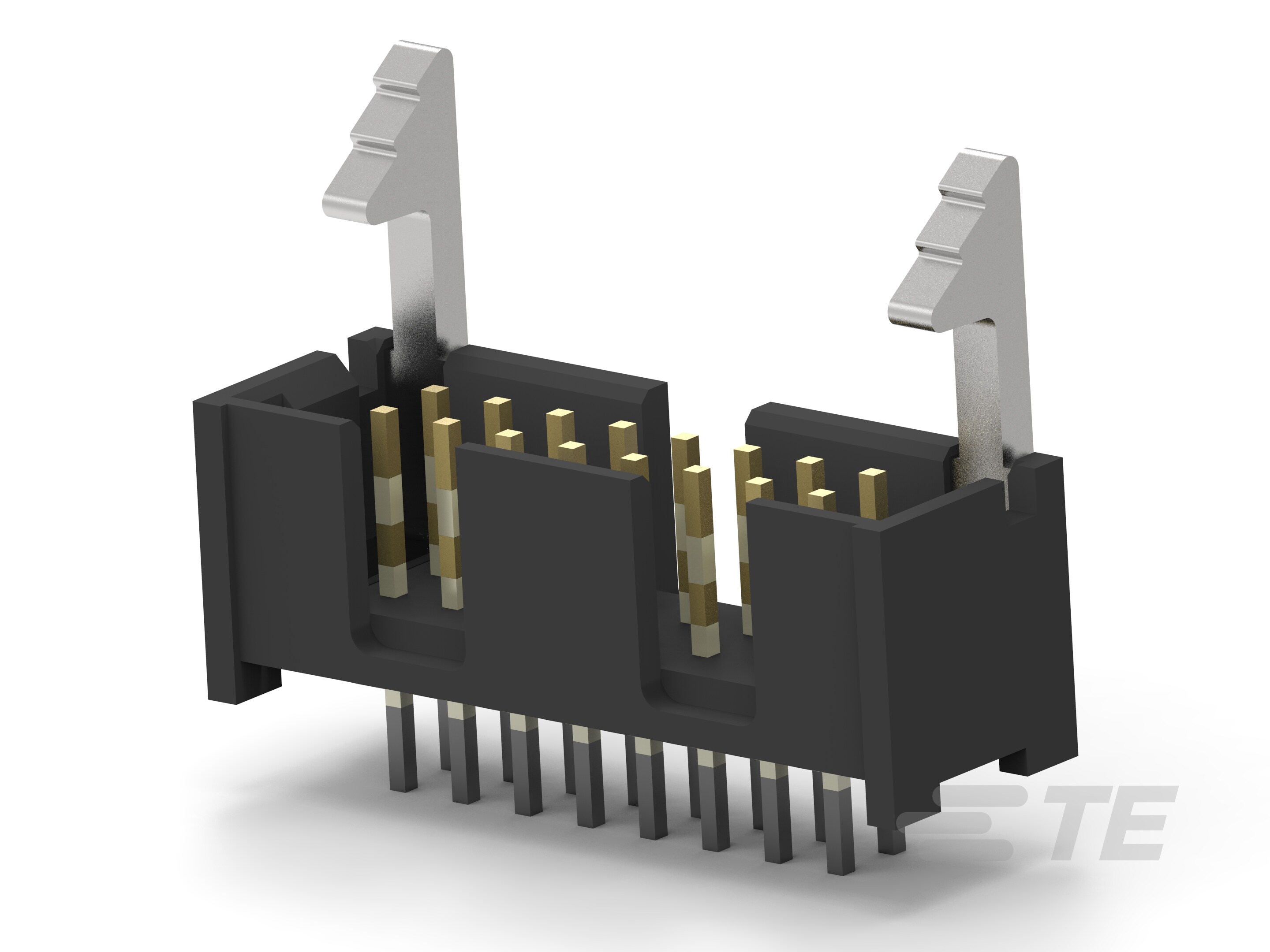

Specification	104313-3

Connector Type	Header
Contact Finish - Mating	Gold-Palladium, Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	30 µin
Contact Length - Mating	0.24 in
Contact Length - Post	0.12 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	1 A
Fastening Type	Short, Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.385 in
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-65 °C
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V
