Specification	135103-07-24.00

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	Right Angle, SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG, 142
Color	Copper
Features	Shielded
Frequency - Max	12.4 GHz
Length	24 in
Overall Impedance	50 Ohms
Style	SMA

135103 Series

Part	1st Connector Mounting Type	Overall Impedance	1st Contact Gender	Cable Type	Cable Impedance	2nd Connector	2nd Connector Mounting Type	1st Connector	Style	Frequency - Max	2nd Contact Gender	Features	Length	Color
McGill Microwave Systems 135103-01-12.00	Free Hanging (In-Line)	50 Ohms	Male	316 RG	50 Ohms	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug	SMA	3 GHz	Male	Shielded	12 in	Copper
McGill Microwave Systems 135103-07-12.00	Free Hanging (In-Line)	50 Ohms	Male	142 RG	50 Ohms	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug	SMA	12.4 GHz	Male	Shielded	12 in	Copper

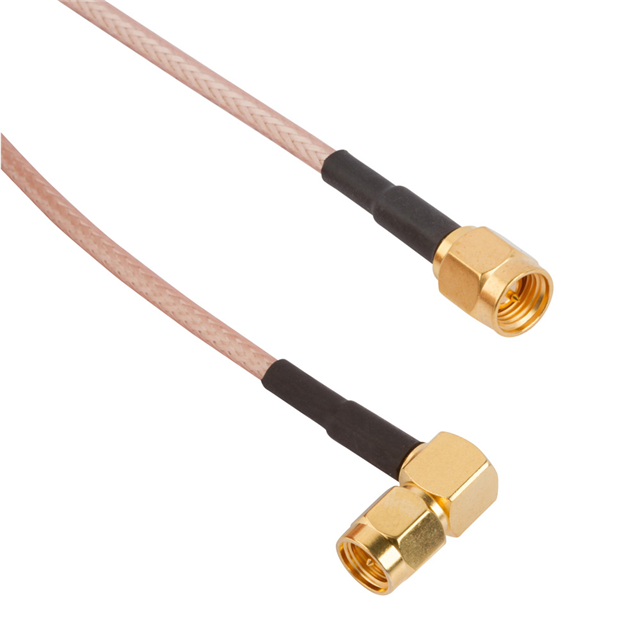

McGill Microwave Systems 135103-03-18.00	Free Hanging (In-Line)	50 Ohms	Male	316 DS RG	50 Ohms	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug	SMA	12.4 GHz	Male	Shielded	18 in	Copper
McGill Microwave Systems 135103-01-M1.00	Free Hanging (In-Line)	50 Ohms	Male	316 RG	50 Ohms	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug	SMA	3 GHz	Male	Shielded	39.4 in	Copper
McGill Microwave Systems 135103-02-M0.75	Free Hanging (In-Line)	50 Ohms	Male	174 RG	50 Ohms	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug	SMA	3 GHz	Male	Shielded	29.53 in	Brown
McGill Microwave Systems 135103-07-06.00	Free Hanging (In-Line)	50 Ohms	Male	142 RG	50 Ohms	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug	SMA	12.4 GHz	Male	Shielded	0.5 ft	Copper
McGill Microwave Systems 135103-01-24.00	Free Hanging (In-Line)	50 Ohms	Male	316 RG	50 Ohms	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug	SMA	3 GHz	Male	Shielded	24 in	Copper
McGill Microwave Systems 135103-01-36.00	Free Hanging (In-Line)	50 Ohms	Male	316 RG	50 Ohms	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug	SMA	3 GHz	Male	Shielded	36 in	Copper
McGill Microwave Systems 135103-04-24.00	Free Hanging (In-Line)	50 Ohms	Male	58 RG	50 Ohms	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug	SMA	1 GHz	Male	Shielded	24 in	Black
McGill Microwave Systems 135103-02-48.00	Free Hanging (In-Line)	50 Ohms	Male	174 RG	50 Ohms	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug	SMA	3 GHz	Male	Shielded	48 in	Brown
