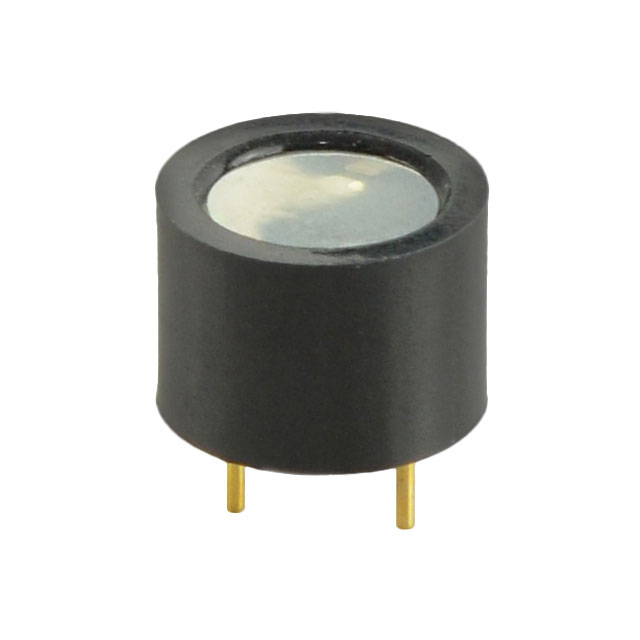

CPT-1495CI-300
ActiveSame Sky (Formerly CUI Devices)
BUZZER PIEZO 10V 14.00MM TH
CPT-1495CI-300
ActiveSame Sky (Formerly CUI Devices)
BUZZER PIEZO 10V 14.00MM TH
Description
General part information
CPT-1495CI-300
BUZZER PIEZO 10V 14.00MM TH
Technical Specifications
Parameters and characteristics for this part
| Specification | CPT-1495CI-300 |
|---|---|
| Current - Supply | 12 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 4.25 kHz |
| Height - Seated (Max) | 0.413 in |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Input Type | Peak-Peak Signal |
| Mounting Type | Through Hole |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Port Location | Top |
| Size / Dimension Diameter | 0.551 in |
| Sound Pressure Level (SPL) | 84 dB |
| Technology | Piezo |
| Termination | PC Pins |
| Voltage - Rated | 10 V |
| Voltage Range (Max) | 30 VDC |
