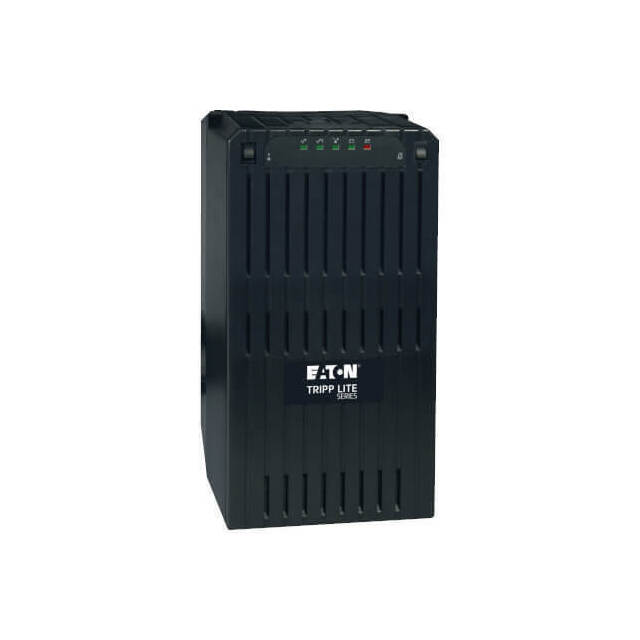

SMART3000NET
ActiveEaton Tripp Lite
UNINTERRUPTIBLE POWER SUPPLY (UPS), TOWER, 8 OUTLETS, 3KVA / 2.4KW, 140 V, 120 VAC, 7 MIN
SMART3000NET
ActiveEaton Tripp Lite
UNINTERRUPTIBLE POWER SUPPLY (UPS), TOWER, 8 OUTLETS, 3KVA / 2.4KW, 140 V, 120 VAC, 7 MIN
Description
General part information
SMART3000NET
UNINTERRUPTIBLE POWER SUPPLY (UPS), TOWER, 8 OUTLETS, 3KVA / 2.4KW, 140 V, 120 VAC, 7 MIN
Technical Specifications
Parameters and characteristics for this part
| Specification | SMART3000NET |
|---|---|
| AC Outlets (Count) | 8 count |
| Applications | Network, Single Phase |
| Backup Time - Max Load | 7 minutes |
| Cord Length | 8 ft |
| Form | Tower |
| Height | 16.5 in |
| Input Connector | NEMA L5-30P |
| Media Lines Protected | RS-232 |
| Output Connector | NEMA 5-15/20R, NEMA 5-15R |
| Output Connector Quantity (NEMA 5-15/20R) | 4 |
| Output Connector Quantity (NEMA 5-15R) | 4 |
| Power - Rated (VA) | 3 kVA |
| Power - Rated (W) | 2400 W |
| Size / Dimension Length | 21.799 in |
| Size / Dimension Width | 12.598 in |
| Type | Line Interactive (Input Regulation) |
| Voltage - Input | 120 VAC |
| Voltage - Output | 110 V, 120 V, 115 V |
