Description
General part information
X000003

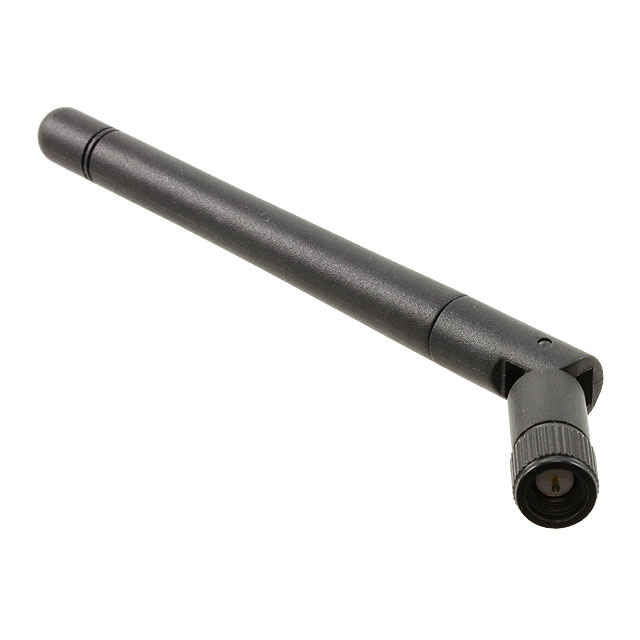

RF ANTENNA GPRS, GSM Whip, Tilt SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | X000003 |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | GPRS, GSM |
| Frequency (Center/Band) | 1.8GHz, 850MHz, 900MHz, 1.9GHz |
| Frequency (Center/Band) - 1 | 850 MHz |
| Frequency (Center/Band) - 2 | 900 MHz |
| Frequency (Center/Band) - 3 | 1.8 GHz |
| Frequency (Center/Band) - 4 | 1.9 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz, 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz, 1 GHz |
| Gain | 1 dBi |
| Height (Max) | 4.252 in |
| Mounting Type | Connector Mount |
| Number of Bands | 4 |
| Return Loss | -10 dB |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male |
| VSWR | 2 |
