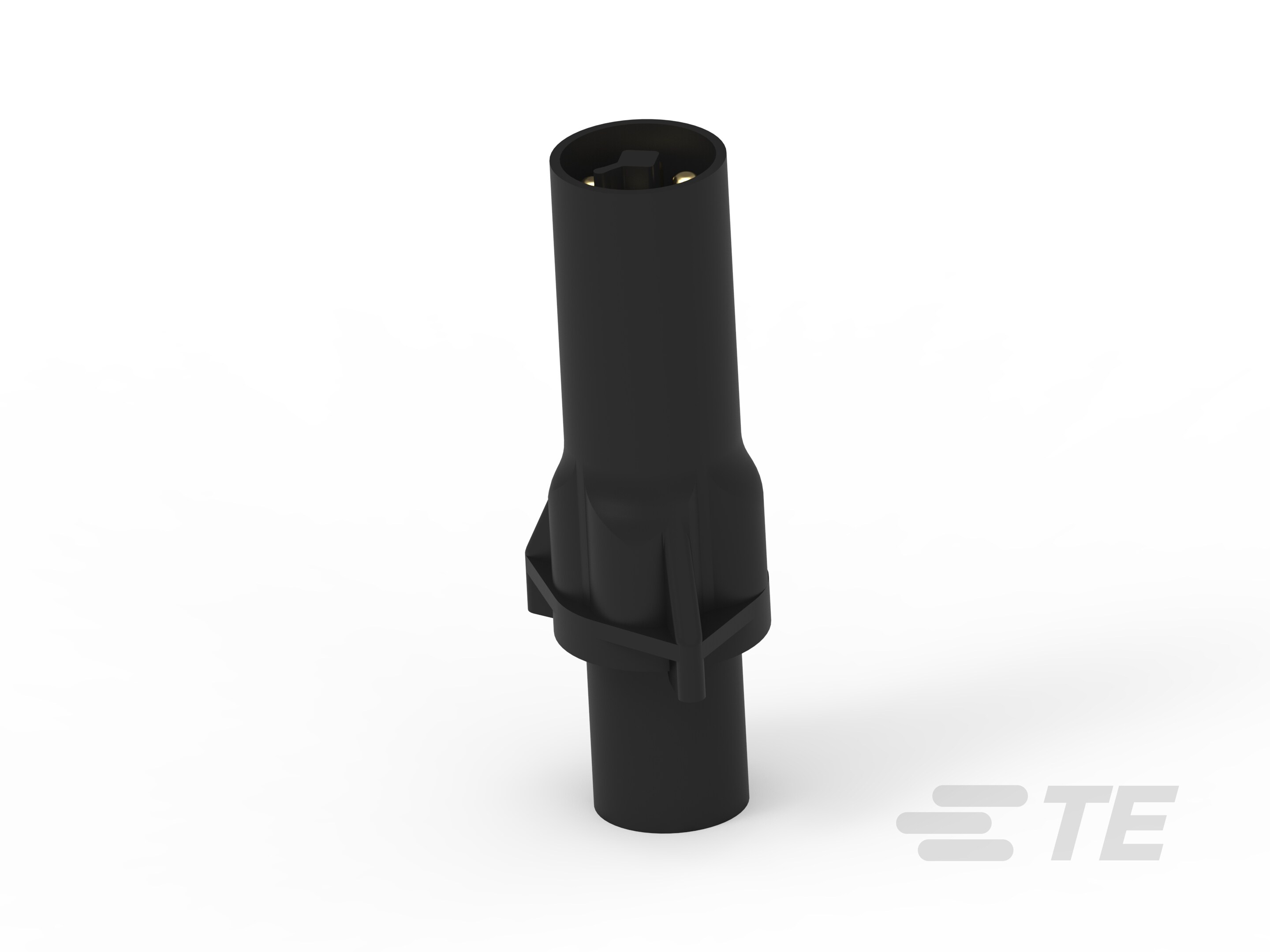

Specification	484023-E

Connector Style	Standard
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Male Pins
Current Rating	4 A
Fastening Type	Push-Pull
Housing Color	Black
Housing Material	Liquid Crystal Polymer, LCP
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	4
Number of Positions (Convert To)	4
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Orientation (Convert From)	T
Orientation (Convert To)	T
Primary Material	Plastic
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To)	M12
Shielding	Unshielded
Voltage Rating	250 V

M12 Connector Series

...

Part	Contact Finish - Mating	Primary Material	Shell Material	Mounting Type	Features	Material Flammability Rating	Color	Orientation	Voltage Rating	Number of Positions	Ingress Protection Description	Ingress Protection IP Rating	Shell Size - Insert	Termination	Connector Type	Current Rating	Shielding	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Contact Material	Assembly Configuration	1st Connector Number of Positions	1st Connector Gender	Cable Type	1st Connector Mounting Type	Length	1st Connector Orientation	1st Connector Shell Size - Insert	1st Connector Number of Positions Loaded	2nd Connector Type	Usage	1st Connector Type	Fastening Type
TE Connectivity AMP Connectors 225522-E	Gold	Plastic	Glass Filled Nylon 10T Polyamide (PA10T)	Right Angle Through Hole	Board Guide Insert Only Requires Shell	UL94 V-0	Black	A	30 V	8	Dust Tight Waterproof	IP67	M12-8	Solder	Insert Male Pins	2 A	Shielded	85 °C	-25 °C	LCP Liquid Crystal Polymer	Copper Alloy
TE Connectivity AMP Connectors 1SET311131R0000							Multiple				Dust Tight Waterproof	IP67					Unshielded					Standard	5 positions	Female Sockets	Individual	Panel Mount	0.66 ft	B	M12	All	Wire Leads	Industrial Environments	Plug
TE Connectivity AMP Connectors 235265-E	Gold			Right Angle Through Hole	Board Guide Insert Only Requires Shell	UL94 V-0	Black	A	60 V	4	Dust Tight Waterproof	IP67	M12-4	Solder	Insert Male Pins	4 A	Unshielded	85 °C	-25 °C	LCP Liquid Crystal Polymer	Copper Alloy
TE Connectivity AMP Connectors 364175-E	Gold			Surface Mount	Board Guide Insert Only Requires Shell	UL94 V-0	Black	D		4	Dust Tight Water Resistant Waterproof	IP65 IP67	M12-4	Solder	Female Sockets Insert	4.8 A	Unshielded	85 °C	-25 °C		Copper Alloy
TE Connectivity AMP Connectors 454949-E				Surface Mount	Board Guide Insert Only Requires Shell		Black	D		4			M12-4	Solder Eyelet(s)	Female Sockets Insert	4.8 A	Unshielded
TE Connectivity AMP Connectors 474580-E	Gold	Plastic	Liquid Crystal Polymer (LCP)	Surface Mount	Board Guide Insert Only Requires Shell		Black	T	250 V	4	Dust Tight Waterproof	IP67	M12-4	Solder	Insert Male Pins	4 A	Shielded	85 °C	-25 °C	LCP Liquid Crystal Polymer
TE Connectivity AMP Connectors 484936-E	Gold			Surface Mount	Board Guide Insert Only Requires Shell	UL94 V-0	Black	D	250 V	4	Dust Tight Waterproof	IP67	M12-4	Solder	Female Sockets Insert	4 A	Unshielded	85 °C	-25 °C	LCP Liquid Crystal Polymer	Copper Alloy
TE Connectivity AMP Connectors 494167-E	Gold			Surface Mount	Board Guide Insert Only Requires Shell	UL94 V-0	Black	A		4	Dust Tight Water Resistant Waterproof	IP65 IP67	M12-4	Solder	Insert Male Pins		Unshielded	85 °C	-25 °C		Copper Alloy
TE Connectivity AMP Connectors 484937-E	Gold	Plastic	Liquid Crystal Polymer (LCP)	Surface Mount	Board Guide Insert Only Requires Shell	UL94 V-0	Black	D	250 V	4	Dust Tight Waterproof	IP67	M12-4	Solder Eyelet(s)	Female Sockets Insert	4 A	Unshielded	85 °C	-25 °C	LCP Liquid Crystal Polymer														Push-Pull
TE Connectivity AMP Connectors 234041-E	Gold			Surface Mount	Board Guide Insert Only Requires Shell	UL94 V-0	Black	D		4	Dust Tight Waterproof	IP67	M12-4	Solder Eyelet(s)	Female Sockets Insert	4.8 A	Unshielded	125 °C	-55 °C
