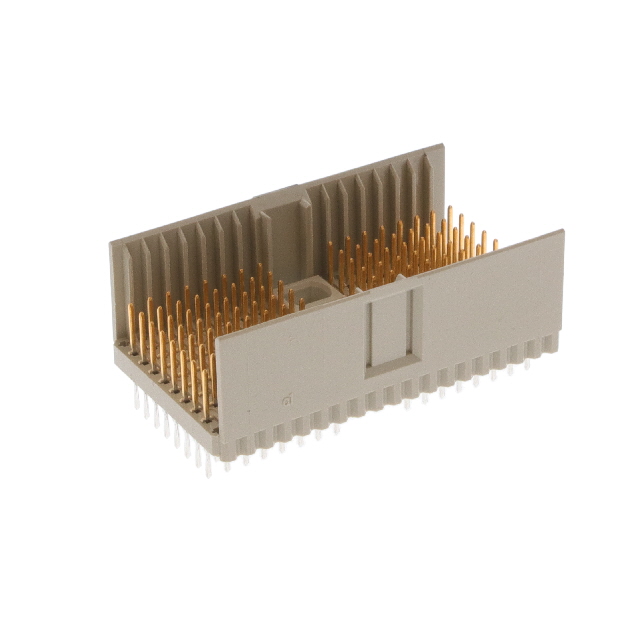

646362-1
ActiveTE Connectivity AMP Connectors
CONN HEADER 128POS 2MM PRESS-FIT
646362-1
ActiveTE Connectivity AMP Connectors
CONN HEADER 128POS 2MM PRESS-FIT
Description
General part information
Z-PACK 2mm HM Series
Hard Metric Backplane PCB Mount Header, ≤1 Gb/s, 16 Column, 8 Row, Mezzanine, 128 Position, 2 mm [.078 in] Centerline, Vertical, Gray, Z-PACK 2mm HM
Technical Specifications
Parameters and characteristics for this part
| Specification | 646362-1 |
|---|---|
| Connector Style | D 16 |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Current Rating | 1.5 A |
| Features | Board Guide |
| Mounting Type | Through Hole |
| Number of Positions | 128 |
| Number of Positions Loaded | All |
| Number of Rows | 8 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.079 in |
| Termination | Press-Fit |
| Voltage Rating | 750 VDC |
