2STR2215

Active

STMicroelectronics

TRANS PNP 15V 1.5A SOT23-3

Search across all available documentation for this part.

Active

STMicroelectronics

TRANS PNP 15V 1.5A SOT23-3

Technical Specifications

Parameters and characteristics for this part

Specification	2STR2215

Current - Collector (Ic) (Max) [Max]	1.5 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	200
Mounting Type	Surface Mount
Operating Temperature	150 °C

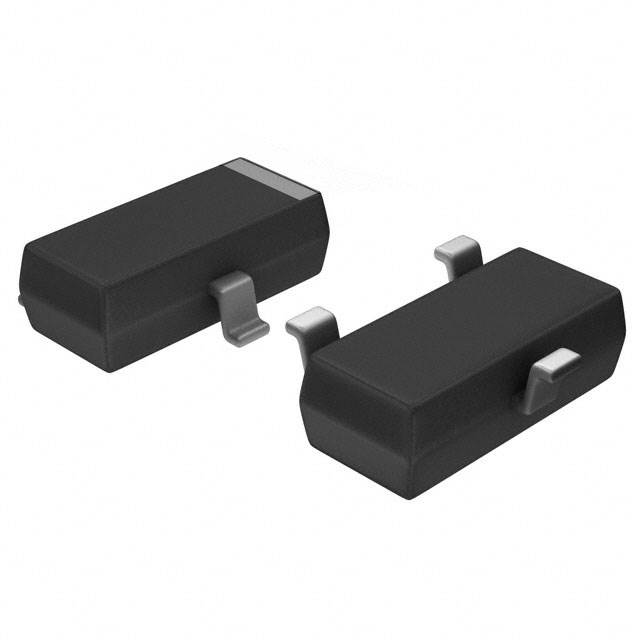

Package / Case	SOT-23-3, TO-236-3, SC-59
Power - Max [Max]	500 mW
Supplier Device Package	SOT-23-3
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	850 mV
Voltage - Collector Emitter Breakdown (Max)	15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

TRANS PNP 15V 1.5A SOT23-3

Part	Operating Temperature	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Mounting Type	Supplier Device Package	Transistor Type	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Package / Case
STMicroelectronics 2STR2215	150 °C	1.5 A	15 V	200	Surface Mount	SOT-23-3	PNP	500 mW	100 nA	850 mV	SC-59, SOT-23-3, TO-236-3

General part information

Bipolar (BJT) Transistor PNP 15 V 1.5 A 500 mW Surface Mount SOT-23-3
