MENB1121A1551F01
ObsoleteSL POWER / Advanced Energy

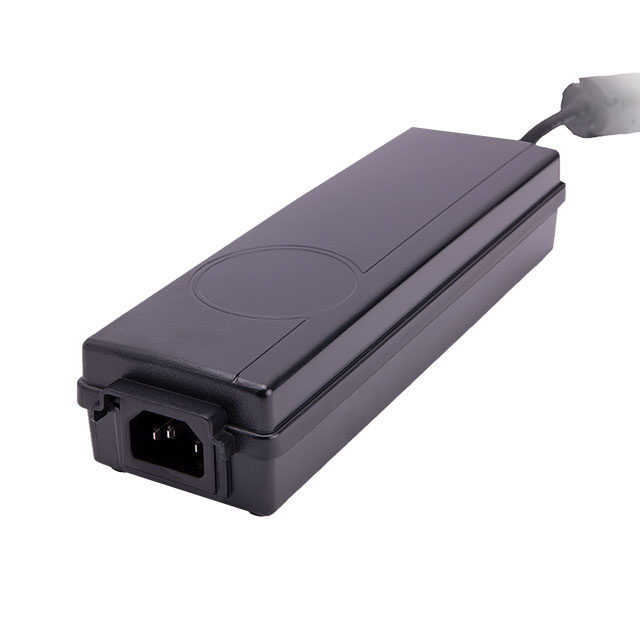

AC/DC DESKTOP ADAPTER 15V 120W
MENB1121A1551F01
ObsoleteSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 15V 120W
Description
General part information
MENB1121A1551F01
15V 120 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MENB1121A1551F01 |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, CE |
| Cord Length | 47.2 in |
| Current - Output (Max) | 8 A |
| Efficiency | Level V |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord (Sold Separately) |
| No Load Power Consumption (Max) | 500 mW |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Rectangular |
| Output Connector Position | 6 |
| Power (Watts) | 120 W |
| Region Utilized | International |
| Size / Dimension Height | 1.74 in |
| Size / Dimension Length | 8.36 in |
| Size / Dimension Width | 2.65 in |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output | 15 V |
