628-W09-220-013
ActiveEDAC Inc.

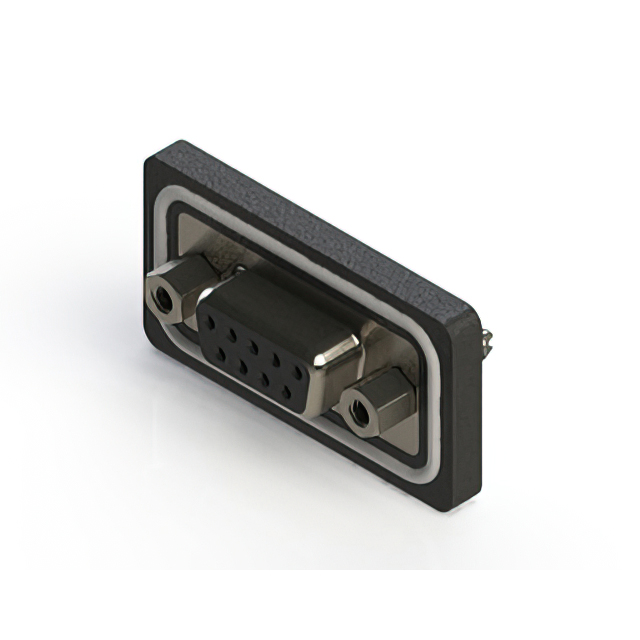

CONN D-SUB RCPT 9P PNL MNT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
628-W09-220-013
ActiveEDAC Inc.
CONN D-SUB RCPT 9P PNL MNT SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 628-W09-220-013 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
628-W09 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Number of Positions | Connector Type | Number of Rows | Ingress Protection | Material Flammability Rating | Dielectric Material | Shell Material, Finish | Current Rating (Amps) | Contact Finish | Mounting Type | Contact Material | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Termination | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -25 °C | 85 °C | Black | D-Sub | 15 µin | 0.38 µm | 4-40 | 9 | Receptacle Female Sockets | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | 5 A | Gold | Through Hole | Copper Alloy | Signal and Power | DE E | 1 | Solder | |
EDAC Inc. | -25 °C | 85 °C | Black | D-Sub | Female Screwlock (4-40) Mating Side | Receptacle Female Sockets | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | 5 A | Gold | Panel Mount Through Hole | Copper Alloy | Signal and Power | DE E | 1 | Solder | Flash | |||
EDAC Inc. | -25 °C | 85 °C | Black | D-Sub | 4-40 | 9 | Receptacle Female Sockets | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | 5 A | Gold | Through Hole | Copper Alloy | Signal and Power | DE E | 1 | Solder | Flash | ||
EDAC Inc. | -25 °C | 85 °C | Black | D-Sub | Female Screwlock (4-40) Mating Side | Receptacle Female Sockets | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | 5 A | Gold | Free Hanging (In-Line) | Copper Alloy | Signal and Power | DE E | 1 | Flash | ||||
EDAC Inc. | -25 °C | 85 °C | Black | D-Sub | 15 µin | 0.38 µm | 4-40 | 9 | Receptacle Female Sockets | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | 5 A | Gold | Free Hanging (In-Line) | Copper Alloy | Signal and Power | DE E | 1 | ||
EDAC Inc. | -25 °C | 85 °C | Black | D-Sub | Female Screwlock (4-40) Mating Side | Receptacle Female Sockets | 2 | IP67 - Dust Tight Waterproof | UL94 V-0 | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | 5 A | Gold | Panel Mount Through Hole | Copper Alloy | Signal and Power | DE E | 1 | Solder | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.84 | |
| 10 | $ 7.05 | |||
| 48 | $ 6.48 | |||
| 96 | $ 6.30 | |||
| 288 | $ 6.00 | |||
Description
General part information
628-W09 Series
25 Position D-Sub Receptacle, Female Sockets Connector
