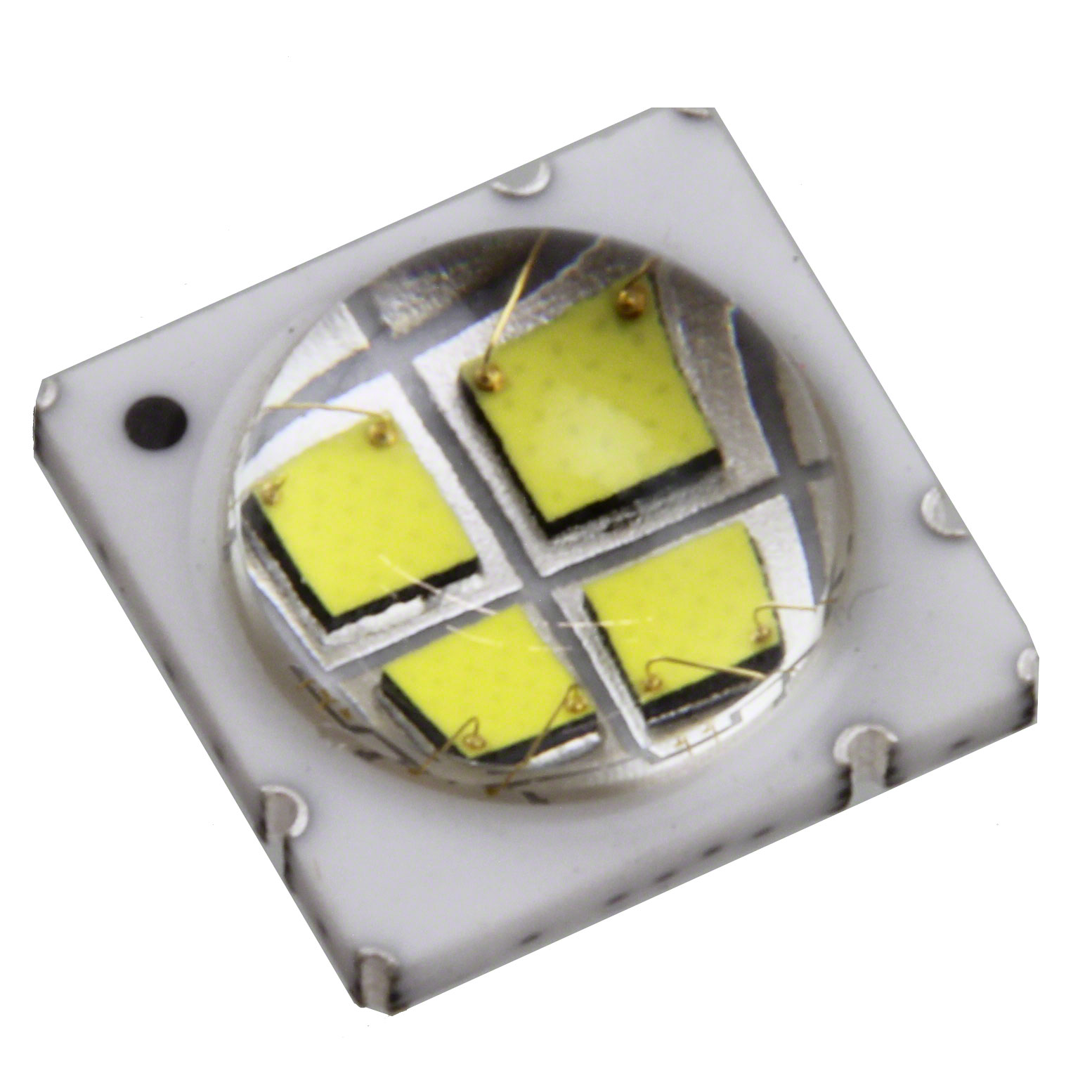

LZ4-00CW08-0050
Obsoleteams-OSRAM USA INC.
LED LZ4 COOL WHITE 5000K SMD
LZ4-00CW08-0050
Obsoleteams-OSRAM USA INC.
LED LZ4 COOL WHITE 5000K SMD
Description
General part information
LZ4-00CW08-0050
LED Lighting LZ4 White, Cool 5000K 12.6V 700mA 90° 2828 (7070 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | LZ4-00CW08-0050 |
|---|---|
| CCT (K) | 5000 K |
| Color | Cool, White |
| CRI (Color Rendering Index) (Typ) | 75 |
| Current - Max | 1 A |
| Current - Test | 700 mA |
| Flux | 800 lm |
| Height - Seated (Max) | 0.154 in |
| Lumens/Watt | 91 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2828 (7070 Metric) |
| Package Name | SMD |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.276 in |
| Thermal Resistance of Package | 2.8 °C/W |
| Viewing Angle | 90 ° |
| Voltage - Forward (Vf) (Typ) | 12.6 V |
