CS35-36SL-CY
ObsoletePanduit Corp
CONN TERM RECT LUG 6-14AWG #3/16
CS35-36SL-CY
ObsoletePanduit Corp
CONN TERM RECT LUG 6-14AWG #3/16
Description
General part information
CS35-36SL-CY

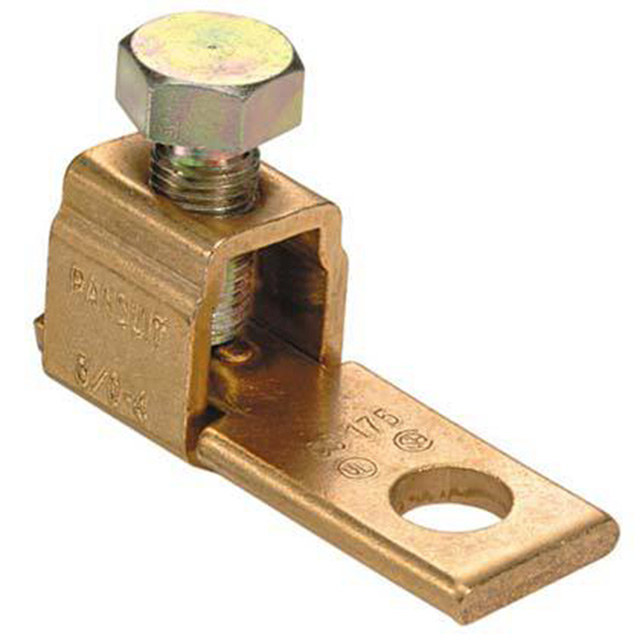

Terminal Connector Rectangular Lug, Grounding 6-14 AWG 3/16 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | CS35-36SL-CY |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | With Screw |
| Insulation | Non-Insulated |
| Length - Overall | 1.14 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 16 Stud, 3 Stud |
| Stud/Tab Size | 0.1875 in |
| Stud/Tab Size (Type) | Stud |
| Tab Thickness | 0.071 in |
| Terminal Style | Single Stud Hole |
| Terminal Type | Lug, Grounding |
| Termination | Screw |
| Width - Outer Edges | 0.382 in |
| Wire Gauge (AWG) (Max) | 14 AWG |
| Wire Gauge (AWG) (Min) | 6 AWG |
