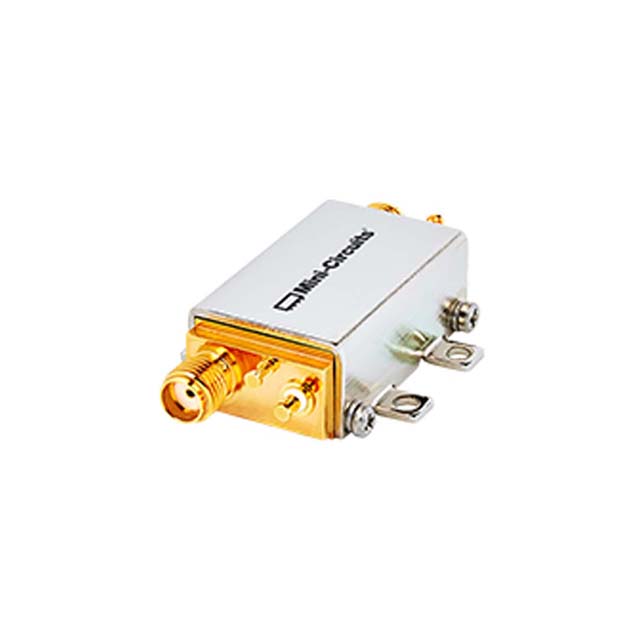

Specification	ZX60-53LNB-S+

Current - Supply	95 mA
Frequency Range 1 (Max)	5 GHz
Frequency Range 1 (Min)	500 MHz
Gain	17.9 dB
Mounting Type	Chassis Mount
Noise Figure	1.63 dB
P1dB	21 dBm
Package / Case	Module, SMA Connectors
RF Type	General Purpose
Test Frequency	1 GHz
Voltage - Supply (Maximum)	5.2 V
Voltage - Supply (Minimum)	4.8 V

ZX60 Series

Part	P1dB	Test Frequency	RF Type	Package / Case	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Noise Figure	Gain	Current - Supply	Frequency Range 1 (Min)	Frequency Range 1 (Max)	Mounting Type	Voltage - Supply	Test Frequency (Minimum)	Test Frequency (Maximum)	Frequency (Min)	Frequency (Max)
Mini-Circuits ZX60-53LN+	19.5 dBm	4 GHz	General Purpose	Module SMA Connectors	7 V	4.9 V	1.9 dB	23.9 dB	80 mA	500 MHz	5 GHz	Chassis Mount
Mini-Circuits ZX60-14012L-S+	11 dBm		General Purpose	Module SMA Connectors			5.5 dB	12 dB	62 mA			Chassis Mount	12 VDC	300 kHz	14 GHz	300 kHz	14 GHz
Mini-Circuits ZX60-06183LN+	12 dBm		Radar	Module SMA Connectors	7 V	4.9 V	2 dB	25.2 dB	64 mA			Chassis Mount		8 GHz	12 GHz	6 GHz	18 GHz
Mini-Circuits ZX60-24A-S+	19.4 dBm	18 GHz	DBS Radar	Module SMA Connectors			7.2 dB	24.4 dB	270 mA			Chassis Mount	5 VDC			5 GHz	20 GHz
Mini-Circuits ZX60-153LN-S+	16.5 dBm	2 GHz	LTE Radar UMTS WiFi WiMAX WLAN	Module SMA Connectors			3.6 dB	14.9 dB	82 mA			Chassis Mount	12 VDC			500 MHz	15 GHz
Mini-Circuits ZX60-3018G-S+	12.8 dBm	20 MHz	Cellular PCS	Module SMA Connectors			2.7 dB	18.8 dB	34 mA			Chassis Mount				20 MHz	3 GHz
Mini-Circuits ZX60-V62+	19.7 dBm	50 MHz	CATV DBS LTE Radar SATCOM Wireless LAN	Module SMA Connectors	5.2 V	4.8 V	5.4 dB	14.4 dB	82 mA			Chassis Mount				50 MHz	6 GHz
Mini-Circuits ZX60-2531MA-S+	19 dBm	500 MHz	Cellular PCN	Module SMA Connectors	5 V	2.8 V	3.1 dB	37 dB	102 mA			Chassis Mount				500 MHz	2.5 GHz
Mini-Circuits ZX60-83LN12+	20.7 dBm	2 GHz	LTE Radar WiFi WiMAX WLAN	Module SMA Connectors	13 V	11 VDC	2.3 dB	18 dB	77 mA			Chassis Mount				500 MHz	8 GHz
Mini-Circuits ZX60-100VH+	30 dBm		General Purpose	Module SMA Connectors			4 dB	36 dB	320 mA			Chassis Mount	12 VDC	300 kHz	100 MHz	300 kHz	100 MHz
