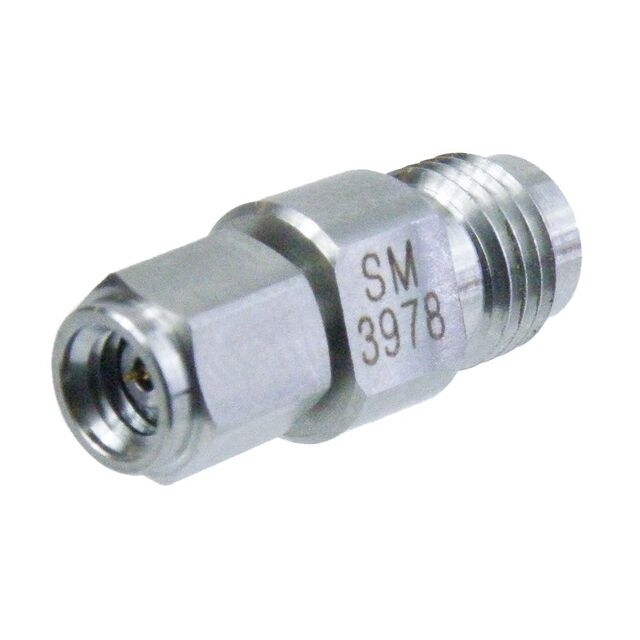

SM3978
ActiveFairview Microwave
ADAPT PLUG-JACK 1.0MM SS 1.35 VS
SM3978
ActiveFairview Microwave
ADAPT PLUG-JACK 1.0MM SS 1.35 VS
Description
General part information
SM3978
Adapter Coaxial Connector 1.0mm Plug, Male Pin To 1.85mm Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM3978 |
|---|---|
| Adapter Series Size | 1 mm, 1.85 mm |
| Adapter Type | Plug to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) Plug Size | 1 mm |
| Convert From (Adapter End) Type | Male Pin |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | 1.85mm Jack |
| Dielectric Material | Polyetherimide (PEI) |
| Fastening Type | Threaded |
| Frequency - Max | 65 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
