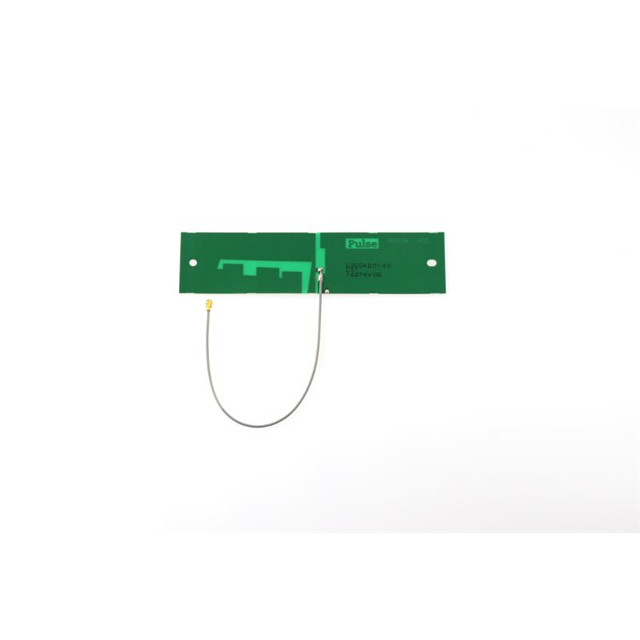

ANTENNA ASSEMBLY 6GHZ 193MM MMCX

Find alt
W3554E0193

W3554E0193

Active
Pulse Electronics

ANTENNA ASSEMBLY 6GHZ 193MM MMCX

Find alt

Description

General part information

W3554E0193

829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz 2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™ PCB Trace RF Antenna 698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz 1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi MMCX Adhesive

Technical Specifications

Parameters and characteristics for this part

SpecificationW3554E0193
Antenna TypePCB Trace
ApplicationsISM, GNSS, Bluetooth, Zigbee™, 2G, 3G, 5G, 4G, Wi-Fi
FeaturesCable, 193mm
Frequency (Center/Band)5.45GHz, 1.5GHz, 3.55GHz, 2.2GHz, 829MHz
Frequency (Center/Band) - 1829 MHz
Frequency (Center/Band) - 21.5 GHz
Frequency (Center/Band) - 32.2 GHz
Frequency (Center/Band) - 43.55 GHz
Frequency (Center/Band) - 55.45 GHz
Frequency GroupWide Band
Frequency Range (Band 1) Maximum960 MHz
Frequency Range (Band 1) Minimum698 MHz
Frequency Range (Band 2) Maximum1.6 GHz
Frequency Range (Band 2) Minimum1.4 GHz
Frequency Range (Band 3) Maximum2.69 GHz
Frequency Range (Band 3) Minimum1.71 GHz
Frequency Range (Band 4) Maximum3.8 GHz
Frequency Range (Band 4) Minimum3.3 GHz
Frequency Range (Band 5) Maximum6 GHz
Frequency Range (Band 5) Minimum4.9 GHz
Gain3.2 dBi, 1.9 dBi, 3.3 dBi, 3.5 dBi, 2.5 dBi
Height (Max)0.008 in
Mounting TypeAdhesive
Number of Bands5
Power - Max5 VA
Return Loss-4dB, -3dB, -5dB, -6dB
Return Loss-5 dB, -6 dB, -3 dB, -4 dB
RF Family/StandardNavigation, 802.15.4, Bluetooth, Cellular, General ISM, WiFi
TerminationMMCX
