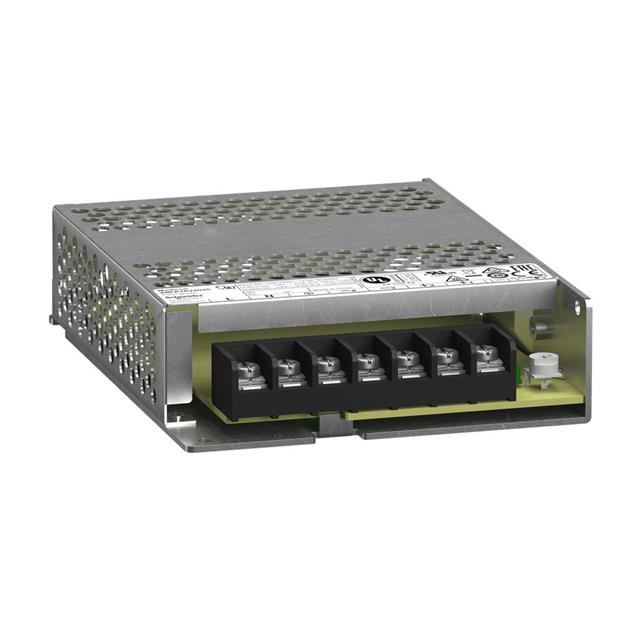

ABLP1A24045
ActiveSCHNEIDER ELECTRIC
POWER SUPPLY, AC-DC, , 24V, 4.5A ROHS COMPLIANT: YES
ABLP1A24045
ActiveSCHNEIDER ELECTRIC
POWER SUPPLY, AC-DC, , 24V, 4.5A ROHS COMPLIANT: YES
Description
General part information
ABLP1A24045
Enclosed AC DC Converters 1 Output 24V 100 ~ 240 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | ABLP1A24045 |
|---|---|
| Applications | Laboratory, ITE (Commercial) |
| Approval Agency | cULus, KC, EAC, CE, CB |
| Current - Output 1 | 4.5 A |
| Efficiency | 89 % |
| Features | Universal Input, IP10 |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 108 W |
| Size / Dimension Height | 1.18 in |
| Size / Dimension Length | 5.08 in |
| Size / Dimension Width | 3.82 in |
| Standard Number | 61010-1, 62368-1, 60950-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Isolation | 3750 VDC |
| Voltage - Output 1 | 24 V |
