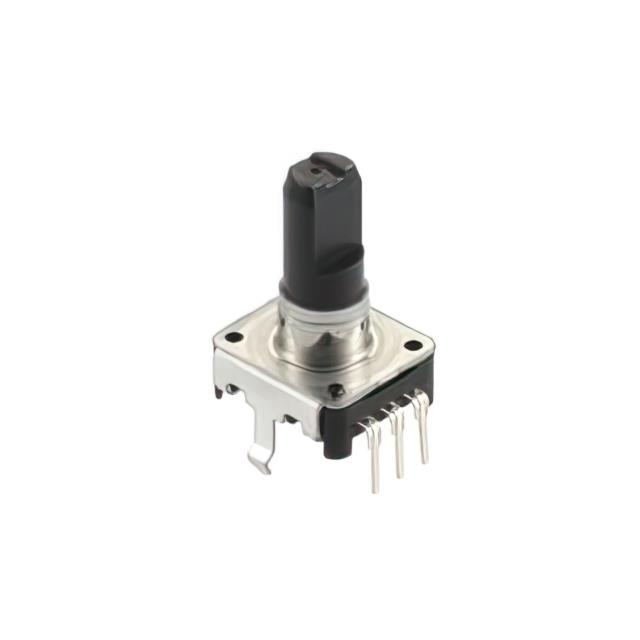

EC12E24404A8
ActiveALPS ALPINE CO., LTD
INSULATED SHAFT ENCODERS
EC12E24404A8
ActiveALPS ALPINE CO., LTD
INSULATED SHAFT ENCODERS
Description
General part information
EC12E24404A8
Rotary Encoder Incremental 24 Quadrature (Incremental) Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | EC12E24404A8 |
|---|---|
| Actuator Type | 12mm Dia Flatted End |
| Built in Switch | No |
| Detent | Yes |
| Encoder Type | Incremental |
| Mounting Type | Through Hole, PCB |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 24 |
| Rotational Life (Cycles Min) | 30 K |
| Termination Style | PC Pin |
| Voltage - Supply | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
