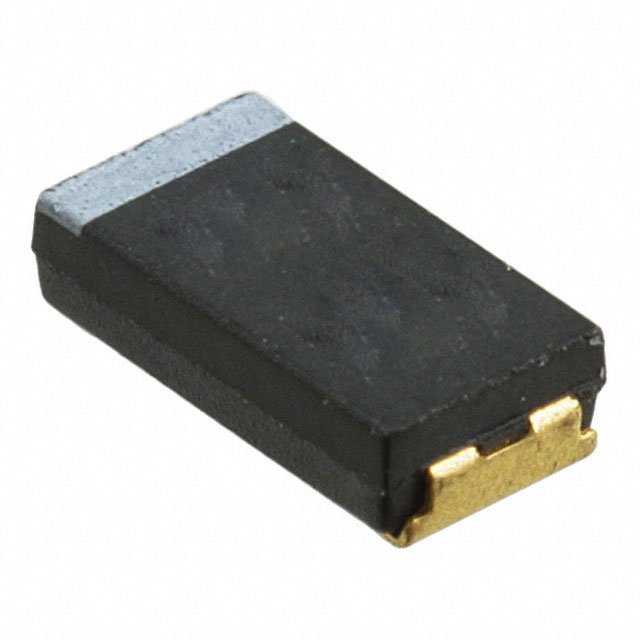

CWR29JC106KCEB
ActiveKYOCERA AVX
CAP TANT 10UF 10% 20V 2010
CWR29JC106KCEB
ActiveKYOCERA AVX
CAP TANT 10UF 10% 20V 2010
Description
General part information
CWR29JC106KCEB
10 µF Molded Tantalum Capacitors 20 V 2010 (5125 Metric) 1.5Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | CWR29JC106KCEB |
|---|---|
| Capacitance | 10 µF |
| ESR (Equivalent Series Resistance) | 1.5 Ohm |
| Failure Rate (Percent) | 0.01 % |
| Failure Rate Rating | C |
| Features | High Reliability |
| Grade | Military |
| Height - Seated (Max) | 0.065 in |
| Manufacturer Size Code | F |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2010 (5125 Metric), 2010 (5025 Metric) |
| Qualification | 11, MIL-PRF-55365 |
| Size / Dimension Length | 0.2 in |
| Size / Dimension Width | 0.1 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 20 V |
